SMART HANDHELD TERMINAL

Model No：SF3509

● 4.0 inch HD screen · Quad -core 2.0GHz
● Android 10.0, 4G full Netcom
● Full keyboard key for easy operation
● Honeywell/Newland 1D&2D Barcode Reader
● Barcode Reading distance exceed 25M
● Rugged Industrial Design, IP66 Standard
● Support GPS, Galileo, Glonass, Beidou

  • ANDROID 10.0 ANDROID 10.0
  • QUAD-CORE 2.0GHz QUAD-CORE 2.0GHz
  • 4.0 INCH DISPLAY 4.0 INCH DISPLAY
  • 3.8V/5000mAh 3.8V/5000mAh
  • IP66 IP66
  • 1D/2D BARCODE SCANNING 1D/2D BARCODE SCANNING
  • NFC SUPPORT 14443A /B protocol NFC SUPPORT 14443A /B protocol
  • UHF Support (Optional) UHF Support (Optional)
  • 8MP Auto-focus 8MP Auto-focus
  • 2+16GB/4+64GB 2+16GB/4+64GB

Product Detail

Specification

SFT SF3509 Smart Handheld Terminal with Android 10.0 OS and high-performance processor Octa-core 2.0 GHz, 2+16GB/4+64GB, It has immensely diverse functionality features for 1D/2D barcode scanning, NFC, and dual band 2.4GHz/5Ghz, big capacity battery of 5000mAh, long distance barcode reading support (exceed 25M) and characteristic rugged robustness of IP66 standard which works in harsh circumstances.

SF3509 is the ideal device to be extensively deployed in different fields like logistic, healthcare, census, parking system, inventory, transportation and ticket system.

handheld smart pda
high performace cpu

4.0 Inches display with 480*800 resolution; Portable economic design and full keyboard (38 keys) for physical easy operation.

android teriminal

Rugged IP66 standard, water and dust proof; Despite Heat and Cold, the device could work under the temperate -20°C to 55°C, super protection in harsh environment.

rugged pda

Up to 5000 mAh rechargeable and replaceable battery satisfy your whole days work.

Also supports docking charging.

5000mAh battery

Built in fast speed 1D and 2D barcode scanner (Honeywell, Zebra or Newland), reading distance exceeds 25M.

barcode scanner android
1d 2d barcode scanner

SF3509 Mobile computer with Built in high sensitive NFC reader supports protocol ISO14443A/B Its high security, stable and connectivity.

nfc reader

8MP Camera auto focus, flash and anti-shake, temperature measurement scanner as optional.

mobile computer

Multiple Application Scenarios

VCG41N692145822

Clothes wholesale

VCG21gic11275535

Supermarket

VCG41N1163524675

Express logistics

VCG41N1334339079

Smart power

VCG21gic19847217

Warehouse management

VCG211316031262

Health Care

VCG41N1268475920 (1)

Fingerprint recognition

VCG41N1211552689

Face recognition

  • Previous:
  • Next:

    • d1

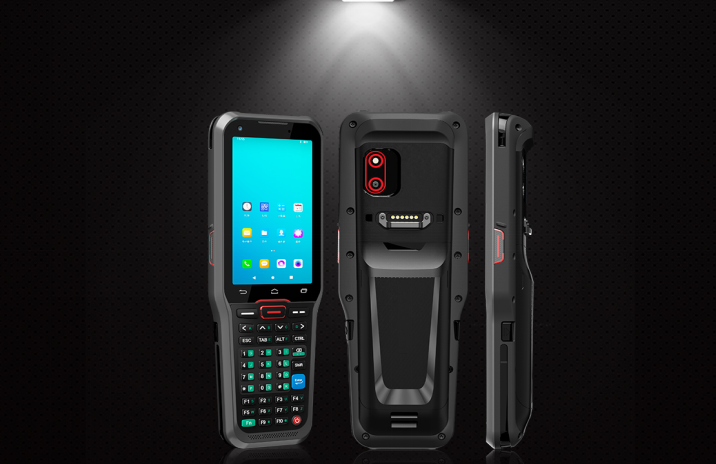

    SF3509

    Smart Handheld Terminal

    4.0-inch HD Screen · Octa-core

    Android 10.0 System ·4G Full Netcom



    d1

    Product parameters
    Performance
    Octa core
    CPU Octa core 64 bit 2.0 GHz high performance processor
    RAM+ROM 2GB+16GB / 4GB+64GB
    Expand memory Micro SD(TF) Supports up to 128GB
    System Android 10.0
    Data communication
    WLAN Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
    WWAN 2G：GSM（850/900/1800/1900MHz）
      3G：WCDMA（850/900/1900/2100MHz）
      4G：FDD:B1/B3/B4/B7/B8/B12/B20TDD:B38/B39/B40/B41
    Bluetooth Support Bluetooth 5.0+BLETransmission distance 5-10 meters
    GNSS Support Gps, Galileo, Glonass, Beidou
    Physical parameter
    Dimensions 201.8mm×72mm×25.6mm
    Weight ＜500g(Depends on device function configuration）
    Display 4.0″, 480×800 resolution
    TP support multi-touch
    Battery capacity Rechargeable polymer battery (3.8V 5000mah) removable
      Standby time >350 hours
      Charging time ＜3H, using standard power adapter and data cable
    Expansion Card slot NANO SIM card x2、TF card x1（Optional PSAM）、POGO Pinx1
    Communication interface Type-C 2.0 USB x 1, supporting OTG function
    Audio Speaker (mono), Microphone, Receiver
    Keypad 38 soft and hard rubber buttons, left button x1, right button x1
    Sensors Gravity sensor, light sensor, distance sensor, vibration motor
    Data collection
    Barcode scanning (Optional)
    1D Scanning engine Mindeo 966,Honeywell N4313
    1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc.
    2D Scanning engine 6602,Honeywell N5703 N6703Zebra SE5500
    2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.
    Camera (Standard)
    Rear camera 800W pixel HD cameraSupport auto focus,Flash, Anti-shake, Macro shooting
    Front camera 200W pixel color camera
    NFC (Optional)
    Frequency 13.56MHz
    Protocol Support ISO14443A/B, 15693 agreement
    Distance 2cm-5cm
    Language/input method
    Input English, Pinyin, Five strokes, Handwriting input, Support soft keypad
    Language Language packs in Simplified Chinese,Traditional Chinese, English, Korean, Japanese, Malaysian,etc.
    User environment
    Operating temperature -20℃ - 55℃
    Storage temperature -40℃ - 70℃
    Environment humidity 5%RH–95%RH(no condensation)
    Drop specification 6 sides Supports 1.5 meters drops on the marble within the operating temperature
    Rolling test 0.5m rolling for 6 sides, can still work steadily
    Sealing IP66
    Accessories
    Standard Adapter, Data cable, Protective film,Instruction manual
