Handheld Android Scanner

SF511

● 4 inch IPS High-Resolution Display

● Android 10, Octa-core 2.0GHz

● Potable, Super Thin Design
● IP67 Standard

● 2D scanning engine Honeywell N6603 CM60 5703

● Transmission distance 5-10 meters

Android 10
Octa-Core 2.0Ghz
4 INCH DISPLAY
3.8v/4500mAh
IP67
1D/2D BARCODE SCANNING
NFC SUPPORT 14443A /B protoco
Support UHF Sled (Optional)
13MP Auto-focus
2+16GB/4+64GB

Send email to us Download as PDF

Product Detail

Parameter

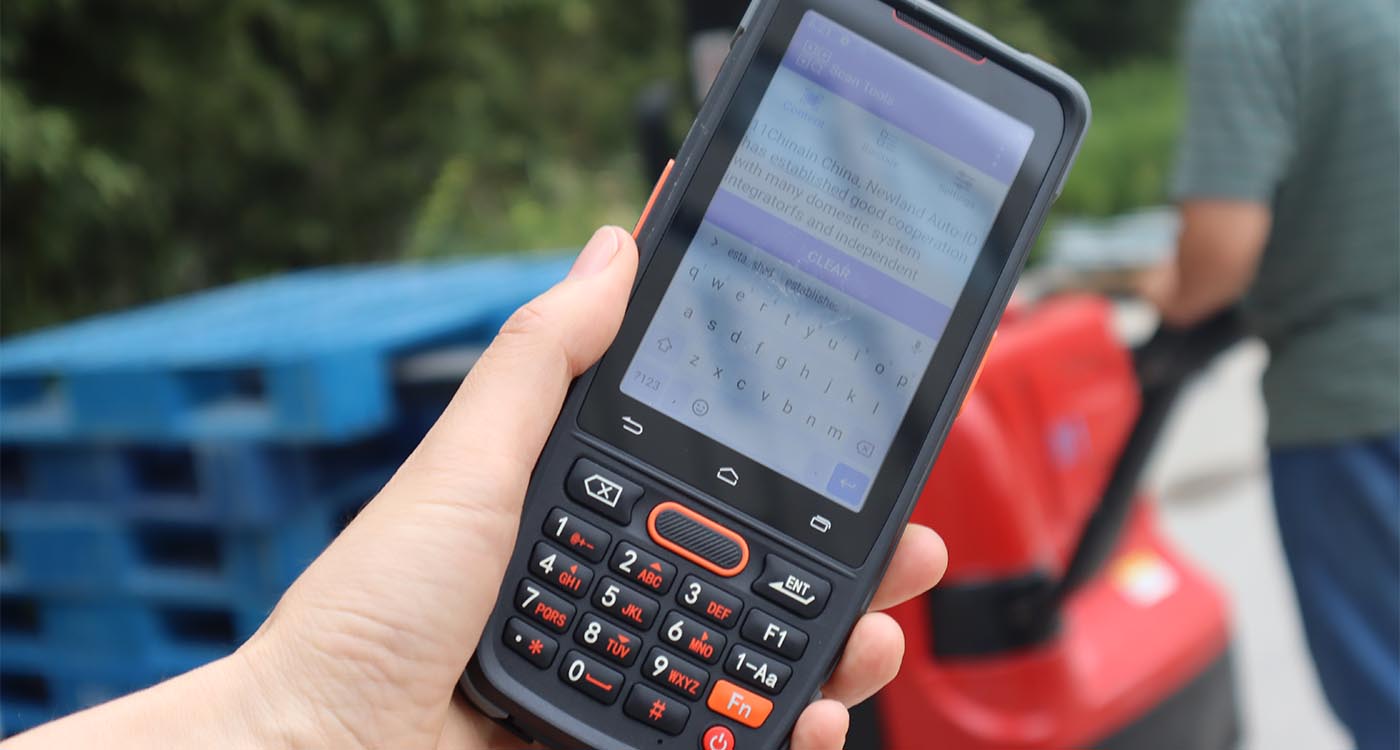

SF511 Handheld Android Scanner is an industrial rugged mobile scanner. Thin and Simple design. Android 10 OS, Octa-core processor, 4 inch IPS (800*480) touch screen, 4800 Mah powerful battery, 13MP camera, 2G,3G,4G wireless communication, Bluetooth 5.0. 1D /2D barcode scanner, widely used in retail, transport &logistics, public sector, field service, access control, people identification, telecom, etc.

Convenient appearance design: Slim and ergonomics design, convenient and comfortable for holding and carrying, 4 inch IPS 800x480; Total weight around 290grams including battery, carry zero burden, more convenient with 2G,3G,4G wireless communication, Bluetooth 5.0.

4800 mAh rechargeable and replaceable battery satisfy your whole day work.

Also support fast charging.

Industrial IP67 design standard, water and dust proof. solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m Waterproof dustproof provide long time using without damage.

Efficient 1D and 2D scanning engine Honeywell N6603 CM60 5703 barcode scanner; fast and efficient for various industrial applications.

Built in NFC module as optional, support ISO14443A/14443B protocol, high effective and sensitive for quick data transmission.

Optional: Dock station and pistol

Safety package with complete accessories.

Multiple Application Scenarios

Widely application in Logistic, warehouse inventory, transportation, healthcare, agriculture fields.

Clothes wholesale

Supermarket

Express logistics

Smart power

Warehouse management

Health Care

Fingerprint recognition

Face recognition

Previous: Mobile Computer Reader

Next: MOBILE BIOMETRIC TABLET

Performance
Octa core
CPU	Cortex-A53 Octa-core 64 bit 2.0GHz high performance processor
RAM+ROM	4GB+64GB
Expand memory	Micro SD(TF)Supports up to 256GB
System	Android 10.0
Data communication
WLAN	Dual-band 2.4GHz/5GHz, Supporting IEEE 802.11a/b/g/n/ac protocol
WWAN	GSM:B2/3/5/8
	WCDMA:B1/2/5/8
	TDSCDMA:B34/39
	FDD_LTE:B1/3/4/7/8/20/12
	TDD_LTE:B34/38/39/40/41
Bluetooth	Support BT 5.0+BLE,transmission distance 5-10m
GNSS	Support GPS,Beidou,Glonass,A-GPS
Physical parameter
Dimensions	167mm ×78.8mm ×18.2 (thinnest)mm
Weight	<300(depending on equipment function configuration)
Display	4.0″screen,480×800 resolution
TP	Support multi-touch
Battery capacity	Rechargeable polymer battery (3.8V 4500mAh) removable
	Standby time >350 hours
	Working time>12 hours
	Charging time<3 hours (using standard charging power adapter and data cable)
	Charge with a 5V2A 10W adapter
Expansion Card slot	Nano SIM card X2,TF Card X1
Communication interface	Type-C 2.0 USBx1,support OTG function
Communication interface	POGO Pin x1
Audio	Speaker (mono),Microphone,Receiver,Flashlight
Keypad	19 two-tone buttons,left button x1,right button x1
Sensor	Gravity sensor,light sensor,distance sensor vibration motor
Language/input method
Input	English,Pinyin,Five strokes,Handwriting input Support soft keypad
Language	Multiple Language packs in Simplified Chinese, Traditional Chinese,English,Korean,Japanese, Malaysian etc
Data collection
Barcode scanning (Optional)
2D Scanning engine	Newland CM60 Honeywell N6603,N4603,N6703,N3603, N6703HD
1D Symbologies	Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar,Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,UCC/EAN-128,GS1 DataBar,HIBC,etc.
2D Symbologies	PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code,etc.
Camera(Standard)
Rear camera	13MP HD camera,Support auto focus, Flash,Anti-shake,Macro shooting
NFC(Optional)
Frequenc	13.56MHz
Protocol	Support ISO14443A/B,15693 agreement
Distance	2cm-5cm
User environment
Operatin temperature	-20℃ -55℃
Storage temperature	-40℃ -70℃
Environment humidity	5%RH-95%RH(no condensation)
Drop specification	6 sides Supports 1.5 meters drops on the marble within the operating temperature
Rolling test	0.5m rolling for 6 sides,can still work steadily
Protection Sealing	IP67
Accessories
Standard	Adapter,Data cable,Protective film,Instruction manual
