RUGGED RFID FINGERPRINT TABLET

Rugged RFID Fingerprint Tablet Model No: SF919 with 10.1 inch large screen (8 inch as option); Android 15OS, Octa-Core2.2Ghz, Super Rugged IP68 standard, 8+256GB Memory, 5G Network support. FAP10/20/30 Fingerprint scanner, UHF RFID and 1D&2D Barcode reading, Widely used for Sim Card registration, Police officer, EKYC and Military, logistic and outdoor projects.

ANDROID 15
OCTA-CORE 2.2Ghz
10.1 INCH DISPLAY
3.7v/10000mAh
UHF RFID
BARCODE SCANNING
NFC SUPPORT 14443A protocol
8+256GB
13MP Auto-focus
Fingerprint Identification
IP68 Standard

Send email to us

Product Detail

Specification

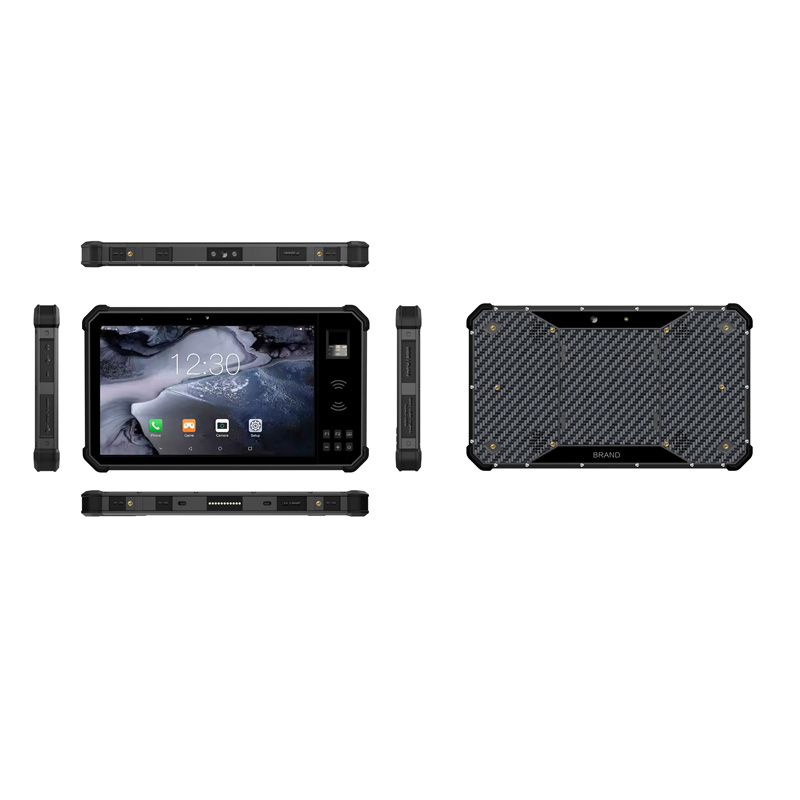

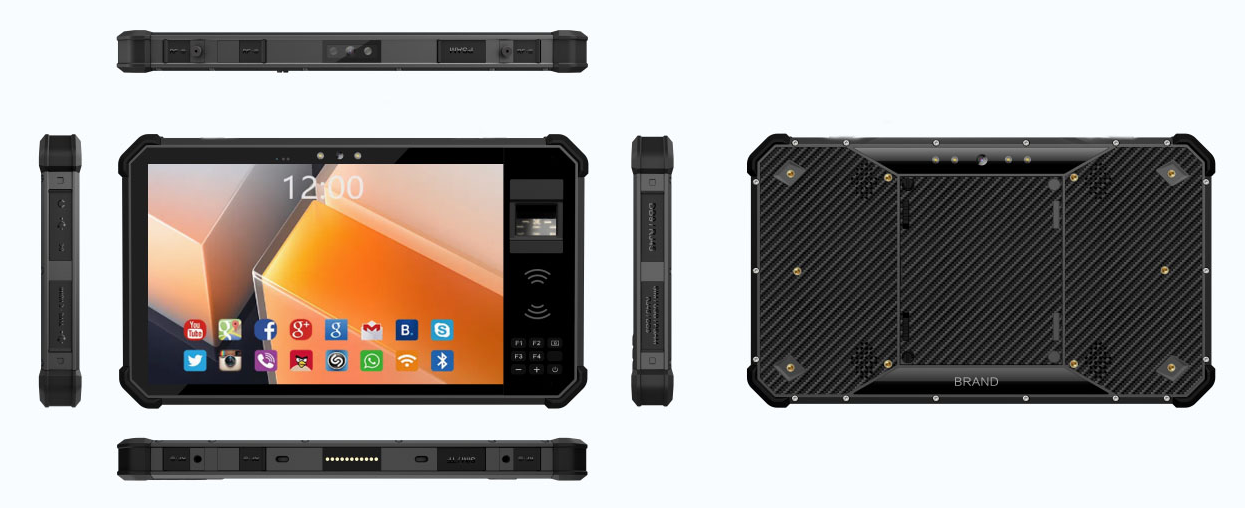

Rugged RFID Fingerprint Tablet SF919 is super industrial IP68 standard, Android 15 OS upgradable , Octa-core processor 2.2/2.4Ghz, Memory 4+64GB or 8+256GB, 10.1 Inch HD large screen, Capacitive panel, 8inches or 10.1inches 1280*720pixel or FHD 1920*1200 IPSI. Military standard with powerful battery 10000mAh, 13MP camera, Built in FBI certified capactive or Optical fingerprint sensor, facial and Iris recognition as optional. Powerful 5G network support. Which widely used for Telco Sim Card Registration, EKYC Census, Industrial RFID filed, Police Officer and Mobile Time Attendance Etc.

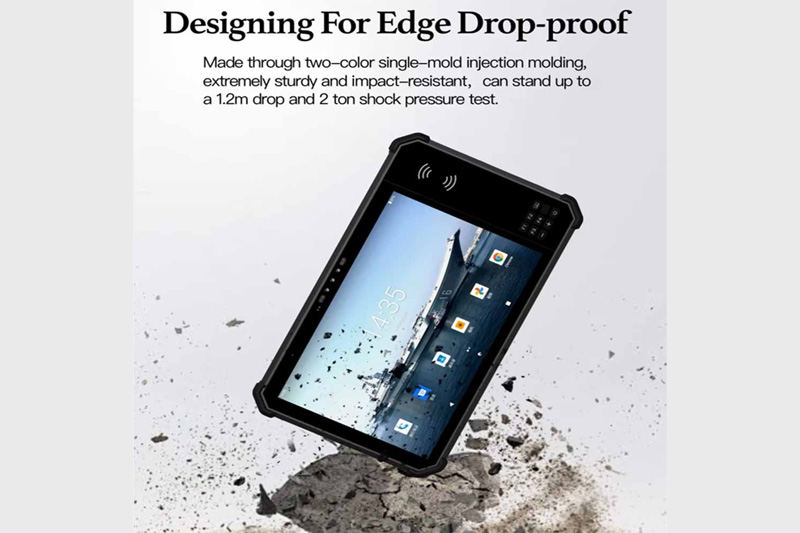

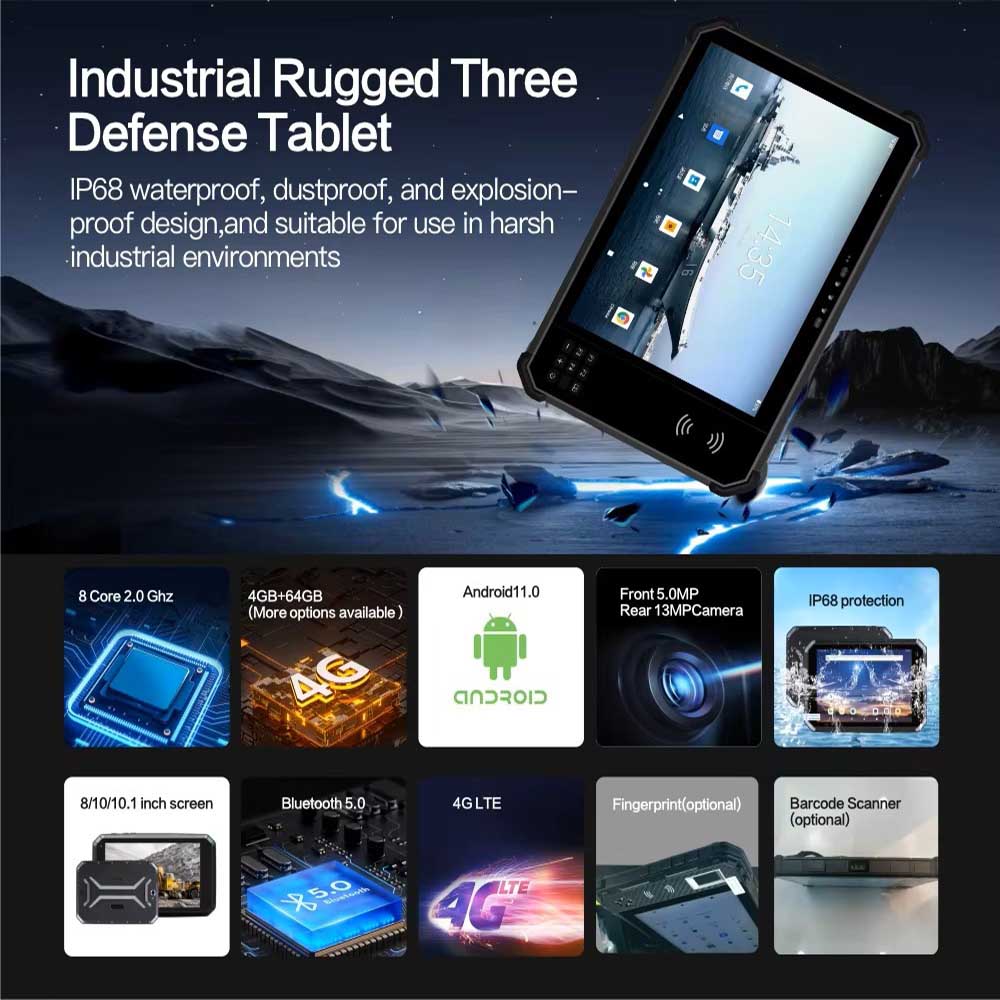

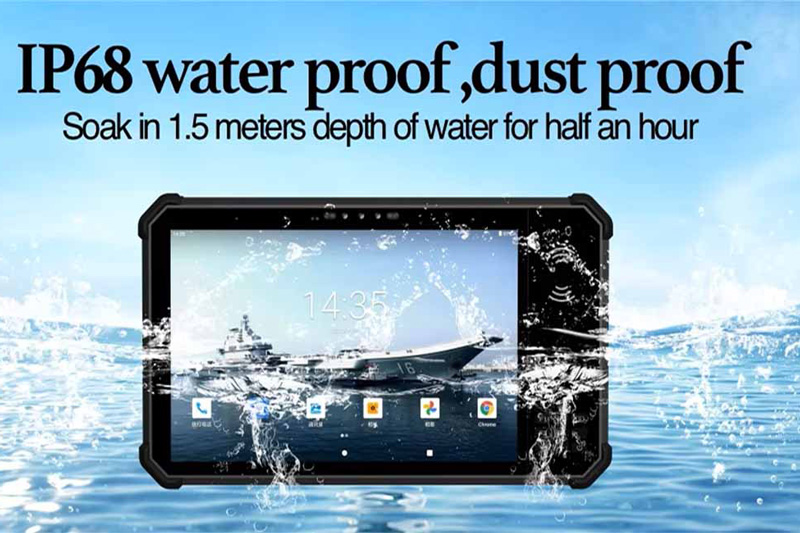

Industrial fingerprint tablet SF919 with IP68 protection standard，high strength industrial material, water and dust proof. Withstanding 1.5 meters drop without damage.

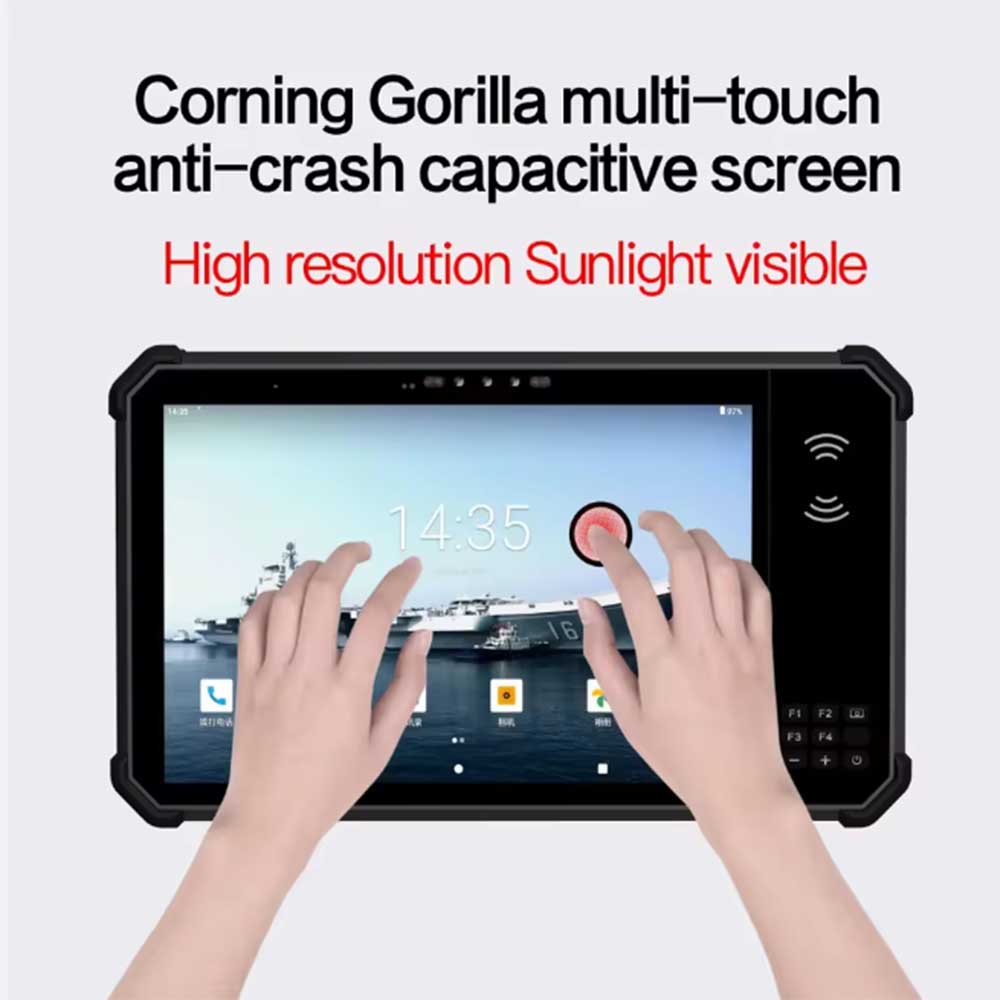

RFID handheld tablet SF919 with big Corning Gorilla multi touch screen, anti-crash and super durable. Up to 10000mAh rechargeable and replaceable battery satisfy your whole days work without interruption.

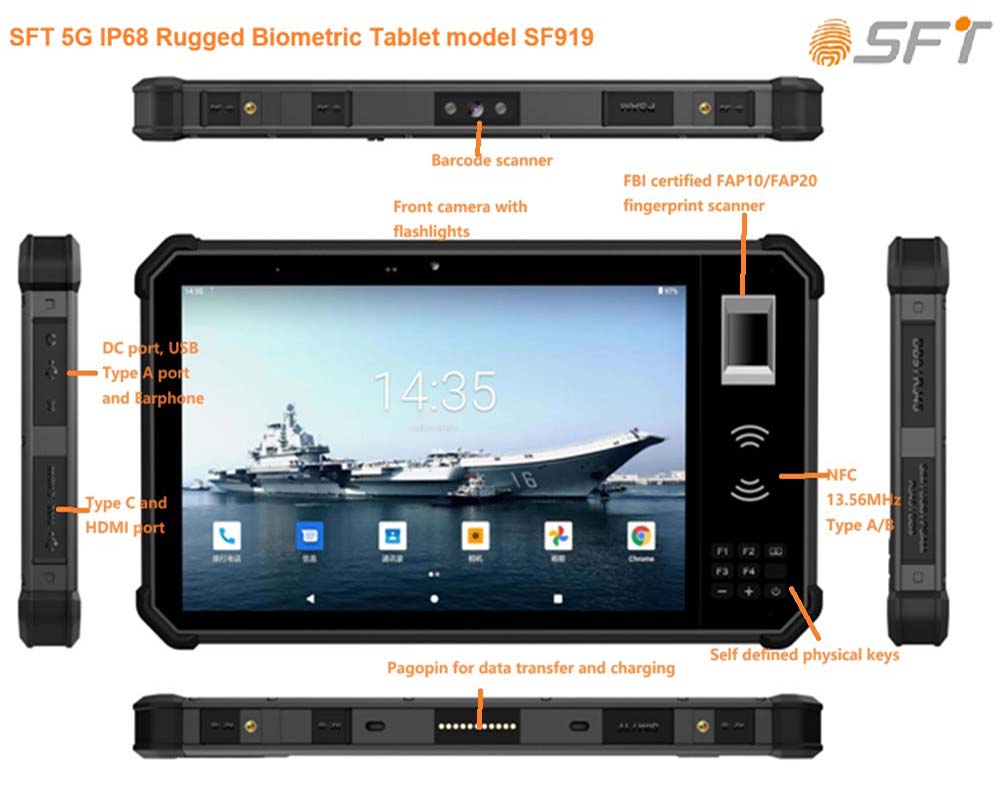

Fingerprint android 10.1 inch tablet SF919 Optical FAP10/FAP20/FAP30 Biometric Fingerprint Sensor/Reader, FBI PIV IQS Certified comply with ISO19794-2/-4, ANSI378/381 and WSQ standard; also combined with facial recognition, making the authentication much safe and convenient.

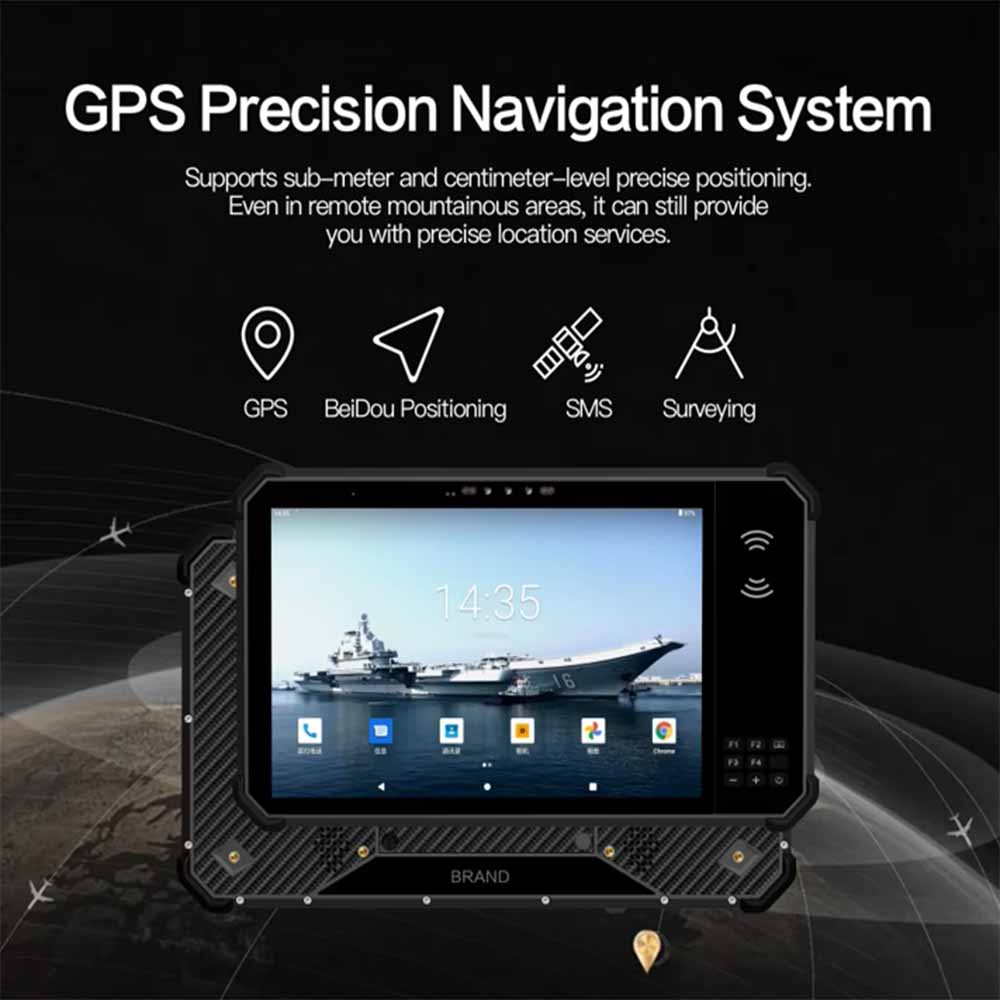

Outdoor military tablet SF919 with built-in GPS，optional Beidou positioning and Glonass positioning, providing high precision safety information at any time, supports centimeter position.

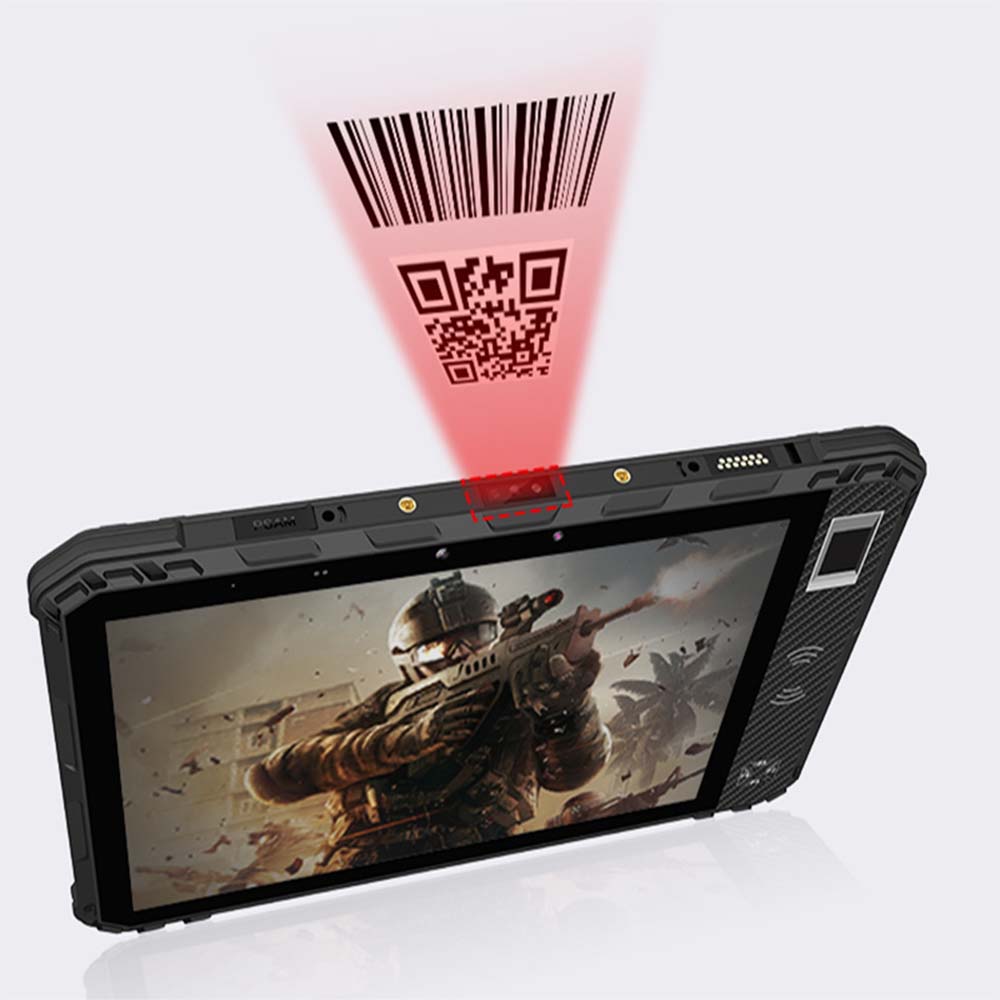

Industrial RFID tablet SF919 of efficient 1D and 2D barcode scanner (Honeywell, Zebra or Newland) built-in to enable decoding different kinds of codes with high accuracy and high speed. MRZ barcode scanner and UHF RFID as option.

Powerful 5G network supporting to ensure tablet best performance.

Rugged RFID Fingerprint Tablet also widely used in mining, census, electric patrol, Military, public transportation, logistic etc.

Multiple Application Scenarios

Clothes wholesale

Supermarket

Express logistics

Smart power

Warehouse management

Health Care

Fingerprint recognition

Face recognition

Previous: NFC Manu Tag

Next: BIOMETRIC RFID SCANNER

Feigete Intelligent Technology Co.,Limited
ADD: 2 Floor,Building No.51,Bantian No.3 Industrial Area,Longgang District,Shenzhen TEL:86-755-82338710 website: www.smartfeigete.com
Model No: SF519	Android UHF Fingerprint Terminal
Product appearance
Type	Detail	Standard configuration	Optional configuration
	Dimensions	1788317mm
	Weight	About 242g
	Color	Black (bottom shell black, front shell black)
LCD	Display size	5.0#(Select 5.72#full screen）
	Display resolution	1280720/Full screen resolution: 1440720(1080*2160 optional)
TP	Touch Panel	Multi-touch panel, Corning grade 3 glass toughened screen
Camera	Front camera	5.0MP	Optional
	Rear camera	13MP Autofocus with flash
Speaker	Built-in	Built-in 8Ω/0.8W waterproof horn x 1
Microphones	Built-in	Sensitivity: -42db, output impedance 2.2kΩ
Battery	Type	Non-removable polymer lithium-ion battery
	Capacity	3.7V/6000mAh (Built-in)
	Battery life	About 8 hours (standby time > 350h)
System Hardware Configuration
Type	Detail	Description	Optional
CPU	Type	MTK 6765-Octa-core
	Speed	2.3GHz
RAM+ROM	Memory+storage	3GB RAM + 32GB (4GB RAM + 64GB optional)
Operating System	Operating System Version	Android 12
NFC	Built-in	Support ISO/IEC 14443A protocol, card reading distance: 3-5cm
Network connection
Type	Detail	Description	Optional
WIFI	WIFI module	WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI,
Bluetooth	Built-in	BT5.0(BLE)
2G/3G/4G	Built-in	CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8
GPS	Built-in	BeiDou/GPS/Glonass positioning
Data Collection
Type	Detail	Description	Optional
Fingerprint	Optional	Fingerprint module: capacitive USB press module	Optional
		Image size：256*360pi xei；FBI PIV FAP10 certification；
		Image resolution：508dpi
		International Standards: Compliant with ISO 19794-2, ISO 19794-4, ANSI 378, ANSI 381 and WSQ international standards.
		Authoritative Certification: Certified by the Ministry of Public Security, US FBI PIV Mobile ID FAP 10, and Indian STQC.
		Acquisition speed：single frame image acquisition time ≤0.25s
Optical fingerprint	Optional	Image size: 300*400 FBI FAP20 certification
		Image resolution: 508 dpi
		International Standards: Complies with ISO 19794-2, ISO 19794-4, ANS 1378, ANS 1381 and WSQ international standards. Authoritative Certifications: Certified by the Ministry of Public Security, and certified by the US FBIPIV MobileIDFAP20.



		Acquisition speed: Single frame image acquisition time ≤ 0.25s
QR code	Optional	Honeywell HS7&zebra se4710&NLS-CM60&NLS-N1	Optional
		Optical resolution: 5mil
		Scanning speed: 50 times/s
		Support code type: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
RFID function	LF	Support 125K and 134.2K；effective recognition distance 3-5cm	Optional
	HF	13.56Mhz, support 14443A/B;15693 agreement, effective recognition distance 3-5cm
	UHF	CHN frequency：920-925Mhz
		US frequency：902-928Mhz
		EU frequency：865-868Mhz
		Protocol standard：EPC C1 GEN2/ISO18000-6C
		Antenna parameter：ceramic antenna（1dbi）
		Card reading distance：according to different labels, the effective distance is 1-6m
Biometric	Identification of second generation ID card of Chinese Residents	Support network version decryption of ID card
	Face recognition	Embed face recognition algorithm
Reliability
Type	Detail	Description
	Tri-proof rating	IP67
Product reliability	Drop height	150cm, power on status
	Operating Temp.	‘-20 °C to 60 °C
	Storage Temp.	‘-20 °C to 70 °C
	Humidity	Humidity: 95% Non-Condensing
