BIOMETRIC RFID SCANNER

Model No：SF519

Biometric RFID Scanner Model No SF519 All-in-one rugged handheld terminal equipped with FBI certified fingerprint scanner, 1D/2D barcode engine, Contactless & UHF RFID reader, 5.72” touchscreen and dual autofocus cameras, ideal for logistics inventory, factory asset management and on-site identity verification

ANDROID 12
OCTA-CORE 2.3GHz
5 INCH IPS DISPLAY
Removeable Battery 3.7V/6000mAh
UHF RFID (Impinj E710/E510 Chip)
1D/2D Barcode Scanning
NFC SUPPORT 14443A protocol
3+32GB (4+64GB as option)
13MP AUTO FOCUS WITH FLASH
FBI certified fingerprint scanner

Send email to us

Product Detail

Specification

Biometric RFID Scanner Model No SF519

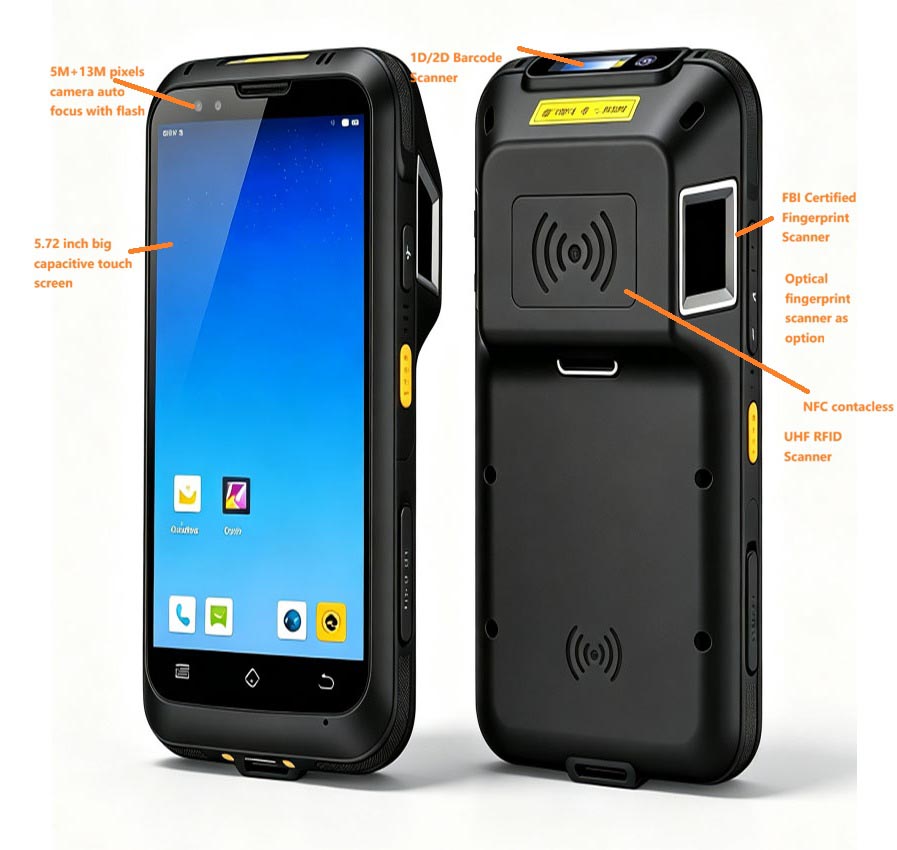

Biometric RFID Scanner Model No SF519 is All-in-one industrial PDA fingerprint RFID barcode scanner with Android 12 OS, Super industrial design of IP67 standard withstanding 1.5M drop testing. CPU Octa-core processor 2.3 GHz, 5.0''or 5.72” IPS touch screen, and removeable battery up to 6000mAh. FBI-grade fingerprint authentication . It widely applies in the fields of logistic & warehouse, healthcare, Sim card registration, government Voter project and on-site identity verification.

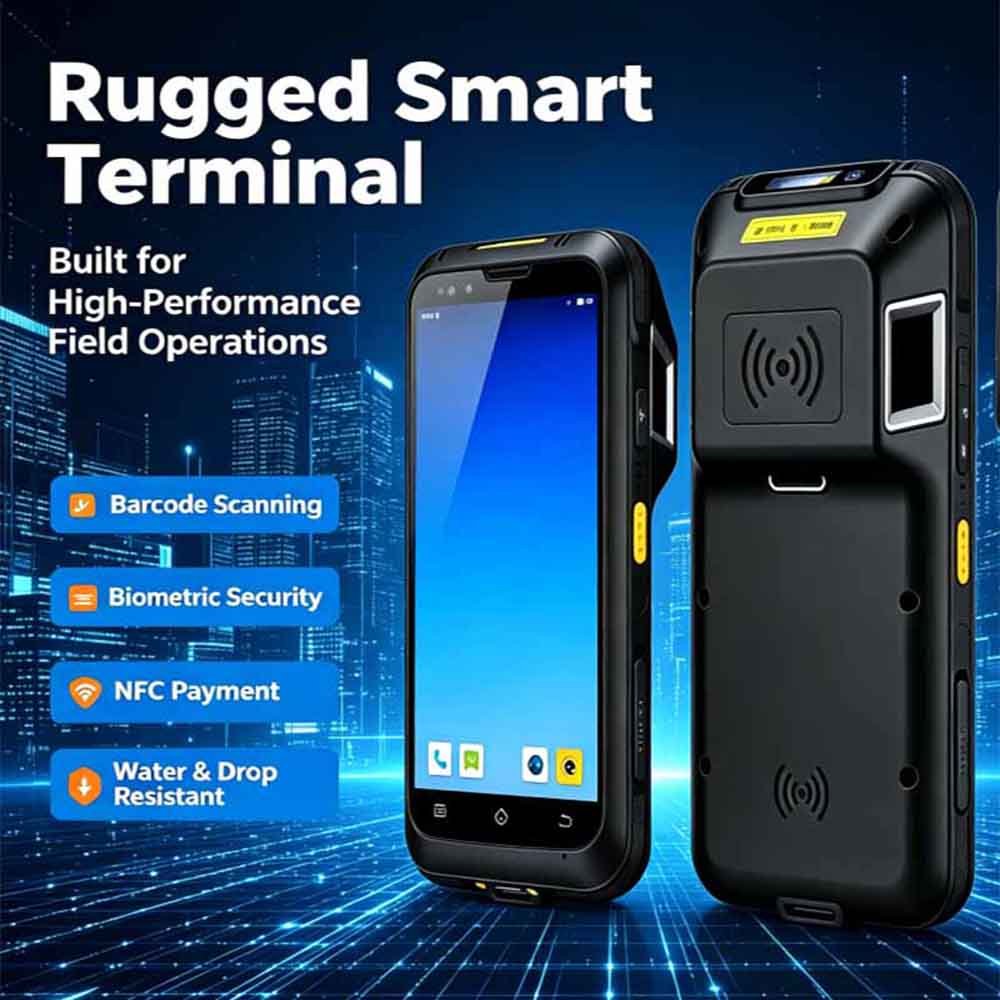

Rugged Mobile Computer SF519 with Large glove-friendly touchscreen and rugged housing adapt to harsh industrial conditions.

SFT Rugged smart PDA SF519 with unique industrial economic design, real IP67 standard dust & water proof,

RFID Barcode reader SF519 supports NFC card reading and long-range UHF scanning, applicable for asset management, contactless card reading and warehouse batch inventory

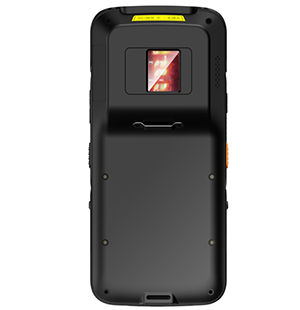

Handheld Android biometric computer SF519 with built in FBI FAP10/FAP20 fingerprint module for different authentication projects.

Up to 8000mAh rechargeable and replaceable battery satisfy your whole days work in outdoor.

FAQ of SFT Biometric RFID Scanner SF519

Q1: Can I choose between capacitive and optical fingerprint sensors?

A: Yes. We have both biometric FBI certified capacitive & Optical fingerprint scanner, to fit different environmental and budget needs.

Q2: What scanning functions does this PDA support?

A: It integrates top-mounted 1D/2D barcode scanning, short-range NFC contactless reading and long-range UHF RFID bulk tag scanning to cover most warehouse asset and personnel identification demands.

Q3: How practical is the screen and camera for field work?

A: The 5.72-inch large capacitive touch screen supports glove operation; the 5MP+13MP autofocus dual cameras with flash can clearly capture goods damage evidence, site documents even in low-light workshops or outdoor environments.

Q4: Is this device compatible with common enterprise management software?

A: Running on mature Android system, it supports customized APP development and seamless docking with mainstream WMS, ERP, inventory and patrol management systems.

Q5: What working scenarios is this rugged PDA suitable for?

A: It fits warehouse inbound/outbound & inventory counting, factory production operation authorization, fixed asset tracking, security patrol inspection and on-site technical service identity verification.

Biometric RFID Scanner SF519 apply for different applications

Multiple Application Scenarios

Clothes wholesale

Supermarket

Express logistics

Smart power

Warehouse management

Health Care

Fingerprint recognition

Face recognition

Industrial IP65 protection standard, high strength industrial material, water and dust proof. Withstanding 1.5 meters drop without damage.

Previous: RUGGED RFID FINGERPRINT TABLET

Next:

Feigete Intelligent Technology Co.,Limited
ADD: 2 Floor,Building No.51,Bantian No.3 Industrial Area,Longgang District,Shenzhen TEL:86-755-82338710 website: www.smartfeigete.com
Model No: SF519	Android UHF Fingerprint Terminal
Product appearance
Type	Detail	Standard configuration	Optional configuration
	Dimensions	1788317mm
	Weight	About 242g
	Color	Black (bottom shell black, front shell black)
LCD	Display size	5.0#(Select 5.72#full screen）
	Display resolution	1280720/Full screen resolution: 1440720(1080*2160 optional)
TP	Touch Panel	Multi-touch panel, Corning grade 3 glass toughened screen
Camera	Front camera	5.0MP	Optional
	Rear camera	13MP Autofocus with flash
Speaker	Built-in	Built-in 8Ω/0.8W waterproof horn x 1
Microphones	Built-in	Sensitivity: -42db, output impedance 2.2kΩ
Battery	Type	Non-removable polymer lithium-ion battery
	Capacity	3.7V/6000mAh (Built-in)
	Battery life	About 8 hours (standby time > 350h)
System Hardware Configuration
Type	Detail	Description	Optional
CPU	Type	MTK 6765-Octa-core
	Speed	2.3GHz
RAM+ROM	Memory+storage	3GB RAM + 32GB (4GB RAM + 64GB optional)
Operating System	Operating System Version	Android 12
NFC	Built-in	Support ISO/IEC 14443A protocol, card reading distance: 3-5cm
Network connection
Type	Detail	Description	Optional
WIFI	WIFI module	WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI,
Bluetooth	Built-in	BT5.0(BLE)
2G/3G/4G	Built-in	CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8
GPS	Built-in	BeiDou/GPS/Glonass positioning
Data Collection
Type	Detail	Description	Optional
Fingerprint	Optional	Fingerprint module: capacitive USB press module	Optional
		Image size：256*360pi xei；FBI PIV FAP10 certification；
		Image resolution：508dpi
		International Standards: Compliant with ISO 19794-2, ISO 19794-4, ANSI 378, ANSI 381 and WSQ international standards.
		Authoritative Certification: Certified by the Ministry of Public Security, US FBI PIV Mobile ID FAP 10, and Indian STQC.
		Acquisition speed：single frame image acquisition time ≤0.25s
Optical fingerprint	Optional	Image size: 300*400 FBI FAP20 certification
		Image resolution: 508 dpi
		International Standards: Complies with ISO 19794-2, ISO 19794-4, ANS 1378, ANS 1381 and WSQ international standards. Authoritative Certifications: Certified by the Ministry of Public Security, and certified by the US FBIPIV MobileIDFAP20.



		Acquisition speed: Single frame image acquisition time ≤ 0.25s
QR code	Optional	Honeywell HS7&zebra se4710&NLS-CM60&NLS-N1	Optional
		Optical resolution: 5mil
		Scanning speed: 50 times/s
		Support code type: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
RFID function	LF	Support 125K and 134.2K；effective recognition distance 3-5cm	Optional
	HF	13.56Mhz, support 14443A/B;15693 agreement, effective recognition distance 3-5cm
	UHF	CHN frequency：920-925Mhz
		US frequency：902-928Mhz
		EU frequency：865-868Mhz
		Protocol standard：EPC C1 GEN2/ISO18000-6C
		Antenna parameter：ceramic antenna（1dbi）
		Card reading distance：according to different labels, the effective distance is 1-6m
Biometric	Identification of second generation ID card of Chinese Residents	Support network version decryption of ID card
	Face recognition	Embed face recognition algorithm
Reliability
Type	Detail	Description
	Tri-proof rating	IP67
Product reliability	Drop height	150cm, power on status
	Operating Temp.	‘-20 °C to 60 °C
	Storage Temp.	‘-20 °C to 70 °C
	Humidity	Humidity: 95% Non-Condensing
