ANDROID SMART MOBILE POS
Android smart mobile Pos Model No SF-T1 is NFC barcode scanner with Android 7.0 OS, Quad-core processor 1.3 GHz (1+8GB/2+16GB as optional), 5.0 Inch HD large screen, 2.0 pixel auto focus real camera with flash, different card reading support with complete payment certification and compatibility, which widely used for payment system, Restaurant/ Retail store, parking system and public traffic.
● Android 7.0, Quad – Core Cortex A53 1.3GHz
● Built-in 58mm Thermal Printer, 80mm/s fast speed
● Excellent industrial design, Crystal texture, Slim and light
● 5.0 inch HD large screen, 720*1280 pixel

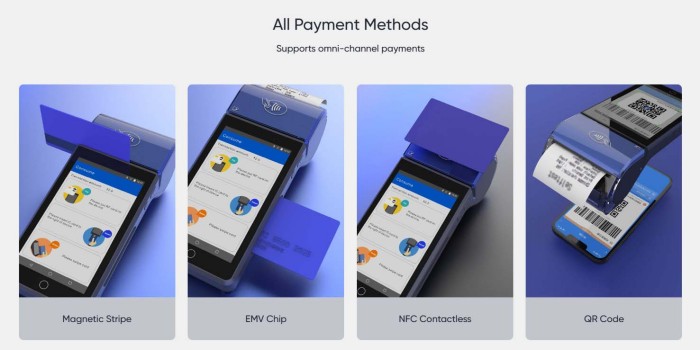

● Different payment methods support
-
ANDROID 7.0
-
QUAD-CORE 1.3Ghz
-
5.0 INCH DISPLAY
-
3.8v/4000mAh
-
UHF RFID
-
card reading support
-
1+8GB(2+16GB as option)
-
2MP Auto focus with flash
-
SUPPORT GPS/GLONASS/BEIDOU
Android Smart Mobile Pos model SF-T1 is NFC android barcode scanner with built in 58mm thermal printer, Android 7.0 OS, Quad-core processor 1.3 GHz, Memory 1+8GB/2+16GB as optional), 5.0 Inch HD large screen, 2.0 pixel auto focus real camera with flash, different card reading support, which widely used for Agency banking, payment system, Restaurant/ Retail store and parking system.
Smart mobile pos terminal configuration overview

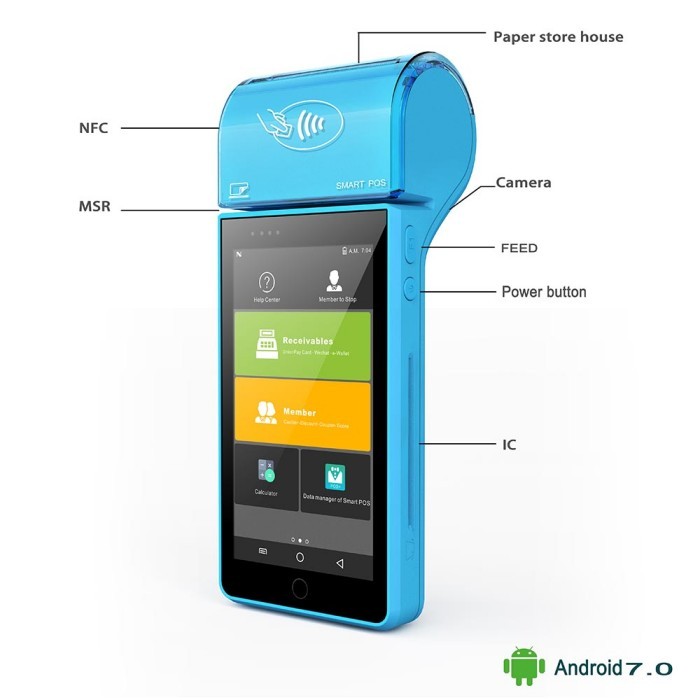

Handheld pos terminal T1 Excellent industrial Pocket design, and transparent paper roll cover, super light and slim
Smart payment terminal Model SFT1 support different kind cards reading, chip card/contactless card and magnetic card. Comply with ISO7816 standards, NFC protocol ISO14443 type A/B card reading, Mifare & Felica card and track 1/2/3. comply with IS07811/7812/7813, maximum makes your life much convenient.

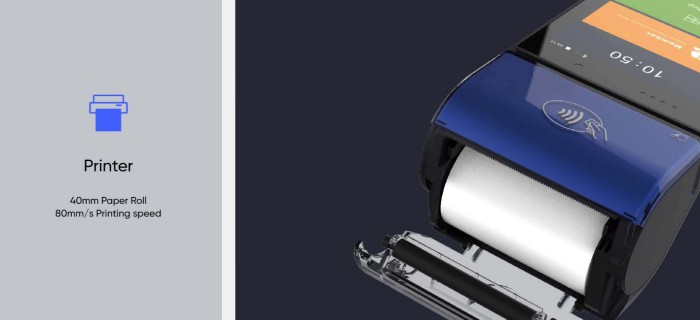

Mobile barcode scanner T1 Built in fast printer 58mm to achieve quickest speed of 80mm/s.

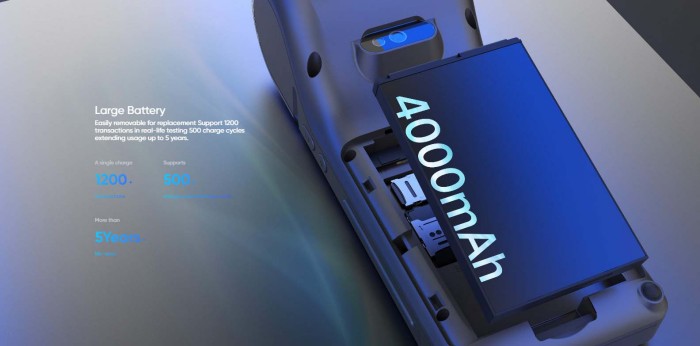

Handheld barcode scanner with ong lasting battery up to 4000mAh with easily removable for replacement support 1200 transactions in real- life testing 500 charge cycles extending usage up to 5 years.

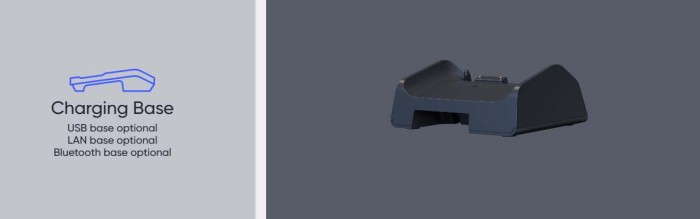

Optional accessory of charging base support fast charging.
Android smart Mobile scanner high safety packing standard, it widely used for bank payment system, ticket system, restaurant, retail store, supermarket, Census etc...
A: Normally we offer 12 Months Warranty after shipment.
A: SFT1 supports all kinds different card reading; such as chip card, contactless card and magnetic card.
A: Yes, we offer free SDK support for secondary development, technical one-on-one services; Free testing software support (NFC, RFID, FACIAL, FINGERPRINT).
A: Generally we would not provide free sample.
If the customer confirm our specification and price, they can order the sample firstly for testing and evaluation.
Sample cost could be negotiated to refund after bulk order placed.
A: We could support client logo on device booting or logo printing for bulk order.
Sample order, depend on project needed.
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition
| Feigete Intelligent Technology Co.,Limited | ||
| ADD: 2 Floor,Building No.51,Bantian No.3 Industrial Area,Longgang District,Shenzhen, China TEL:86-755-82338710 website: www.smartfeigete.com |
||
| Specification Sheet | ||
| Model No: SF-T1 | Android Smart Mobile Pos/Scanner  |
|
| Specification Sheet | ||
| Size | 194.7*80*25.6 mm | |
| Weight | 415g (include battery) | |
| OS | Android 7.0 | |
| CPU | Quad – Core Cortex A53 1.3GHz | |
| Security Processor | RISC Core ( ARMv7 – M ) | |
| Storage | ROM: 8GB (Optional to 16GB) | |
| RAM: 1GB (Optional to 2GB) | ||
| Display | 5.0 inch color display screen，resolution：720*1280 | |
| Rear Camera | 2 million pixels, support lights, video. | |
| Audio | Built in speakers and microphones | |
| Band/Mode | 2G：GSM/EDGE/GPRS (850,900,1800,1900MHz) | |
| 3G：UMTS/HSDPA/HSPA/HSPA+ (850,900,1900,2100 MHz)/CDMA EV-DO Rev.A (800MHz)(OPT) | ||
| 4G : TDD-LTE (B34、B38、B39、B40、B41),FDD-LTE (B1、B3、B8) | ||
| Mobile network | TD-LTE/FDD-LTE/WCDMA/GSM | |
| Card Slot | TF Card×1 | SIM×2 + PSAM×1 or SIM×1 + PSAM×2 | |
| Positioning | Support GPS / GLONASS / BEIDOU | |
| Barcode | 1D/2D Barcode reader through software decording | |
| NFC | Support ISO/IEC 14443 A&B、Mifare1 card ; | |
| WIFI | Dual frequency WIFI , supports 802.11a/b/g/n and supports 2.4 GHZ & 5GHZ | |
| Fingerprint (optional) | Semi-conducting Capacitive | FBI and STQC Certified | |
| Certification | PCI 6 丨 EMV Contact L1 丨 EMV Contact L2 丨 EMV Contactless L1 MasterCard TQM 丨 MasterCard PayPass 丨 Visa payWave Discover D-PAS 丨 American Express丨UPI 丨JCB MIR 丨 RuPay 丨 PURE 丨 NSICC 丨 CE 丨 ROHS |
|
| Bluetooth | Bluetooth 4.0 | |
| Printer | Support high-speed mute thermal printing , paper width : 58mm , maximum roll diameter：40mm. | |
| Magnetic card reader | Support 1/2/3 tracks, support two-way swipe card , comply with IS07811/7812/7813 and other general standards. | |
| IC card reader | Comply with ISO7816 standards, has passed the China UnionPay PBOC 3, EMV 4.3, LEVEL, 1&2 certification. | |
| Battery | 3.8V 4000mAh Polymer battery | |
| Physical interface | Micro USB | |
| Accessories(optional) | Base: Charge&USB/Charge &BT/Charge&LAN&USB Other: Silicone Case/Leather Case /Holder |
|
-
