INDUSTRIAL BARCODE SCANNER
Model No：SF518
● Android 12 OS, Qualcomm OCTA-CORE 2.0GHz
● Laser Barcode Scanner for batch scanning and OCR &DPM
● IP67 Standard, Super rugged
● Industrial Economic design, Comfortable and Convenient
● 4G Network and dual Wifi 5G
● Big removeable battery up to 5000mAh
-
ANDROID 12
-
Qualcomm OCTA-CORE 2.0GHz
-
5.5 INCH IPS DISPLAY
-
Removeable Battery 4.5v/5000mAh
-
Industrial IP67 standard
-
Batch Barcode Scanning
-
NFC SUPPORT 14443A protocol
-
4+64GB (6+128GB as option)
-
13MP AUTO FOCUS WITH FLASH
-
GPS, GALILEO, GLONASS,BEIDOU support

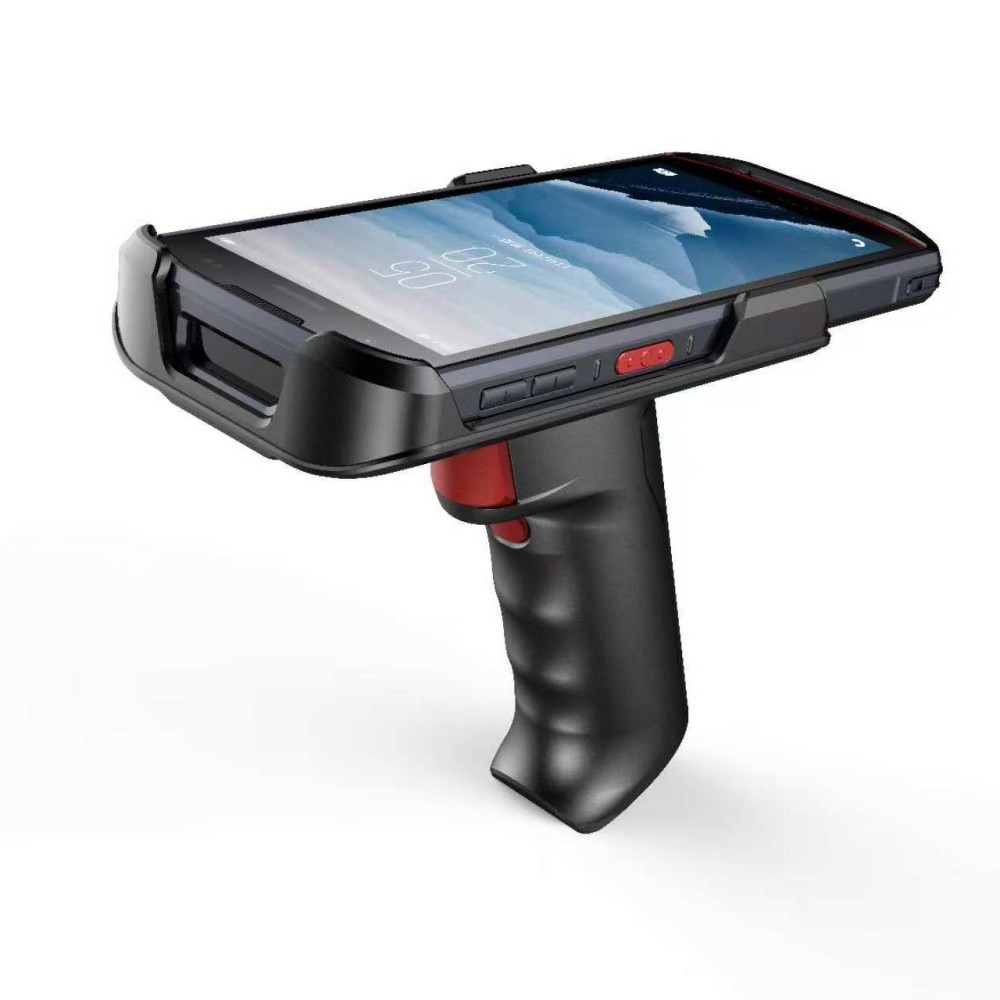

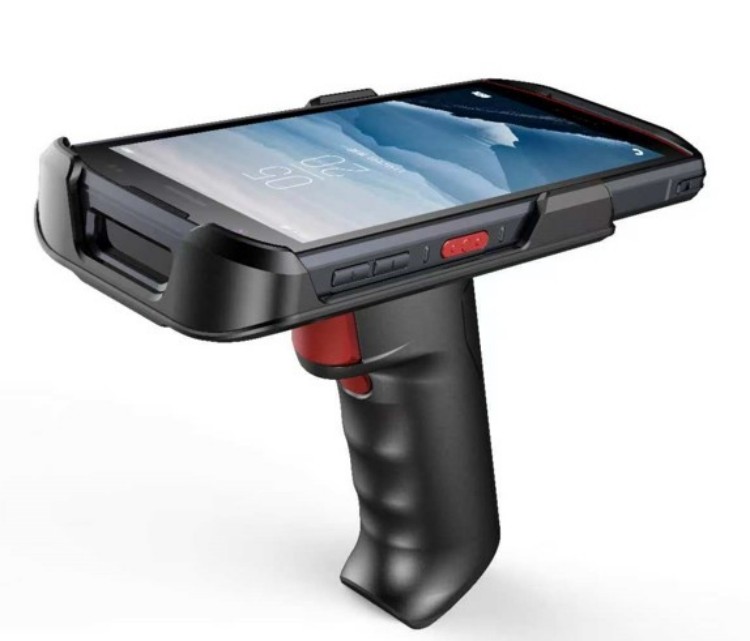

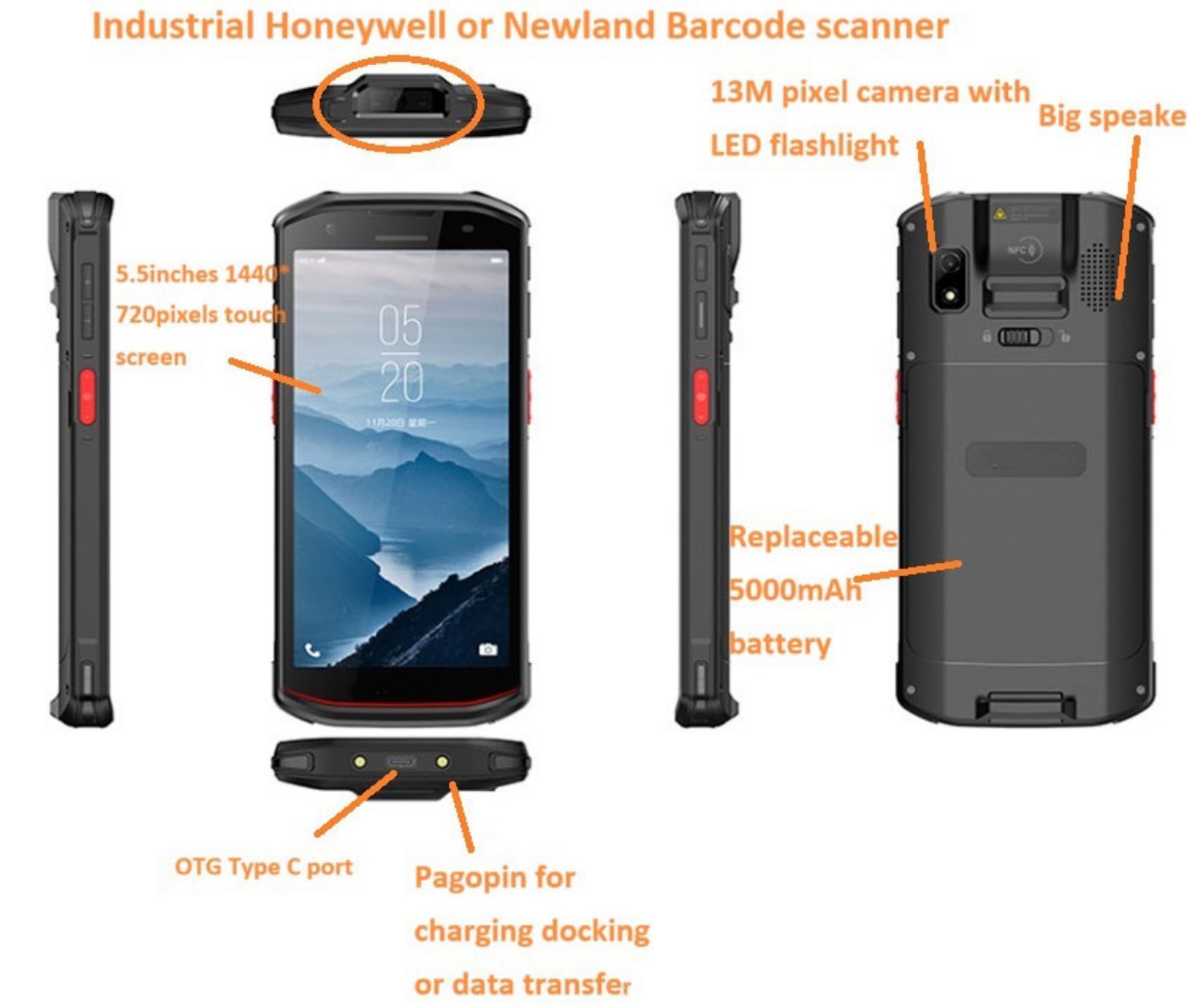

SF518 Handheld Industrial Barcode Scanner is the ultimate Rugged barcode PDA with Android 12 OS, Super industrial design of IP67 standard withstanding 1.5M drop testing. CPU of Qualcomm Octa-core processor 2.0 GHz, 5.5'' IPS touch screen, powerful removeable battery 5000mAh, 13MP camera, and sensitive barcode scanning supports batch scan. It widely applies in the fields of logistic, warehouse, State grid, inventory, healthcare, retailing, cold chain and transportation.
SF518 Android handheld PDA with Large 5.5 Inches Durable Screen to offer wider viewing angles, full display overview

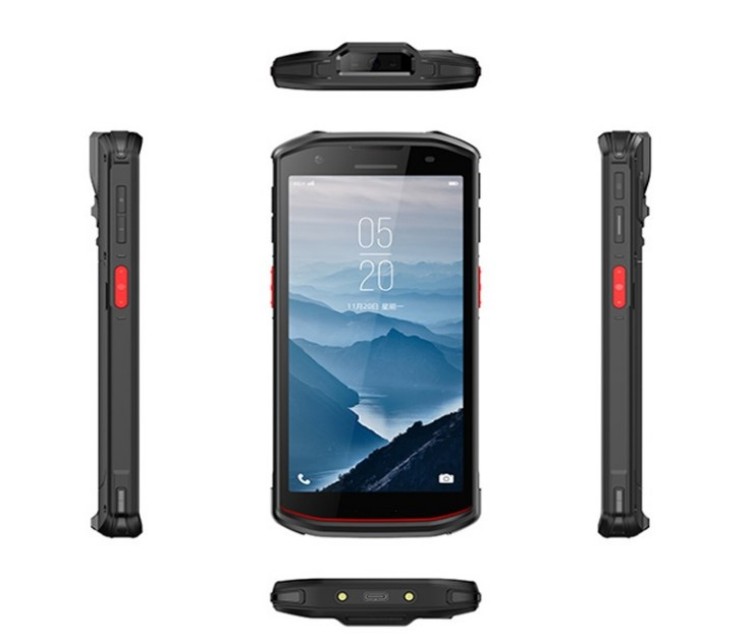

SFT Barcode Terminal SF518 with unique industrial economic design, real IP67 standard dust & water proof. Withstanding 1.5 meters drop without damage.
Up to 8000mAh rechargeable and replaceable battery satisfy your whole days work in outdoor.

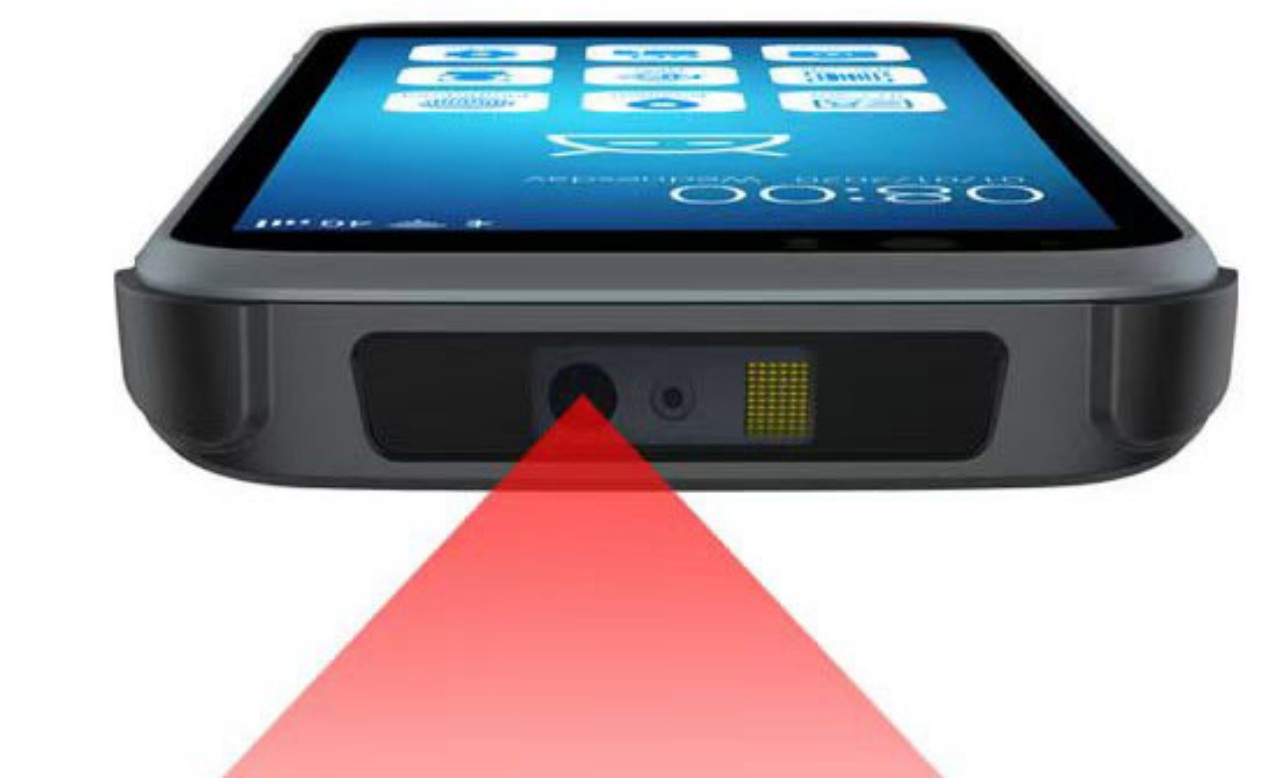

Built in efficient 1D/2D Laser barcode scanner to achieve fastest speed of different data collection, also support batch scanning, OCR&DPM .
Rugged Barcode date collector SF518 apply for different applications
Widely used for parking, ticket system, restaurant, retail store, Census etc
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition
 Feigete Intellient Technology Co.,Limited |
||
| ADD: 2 Floor,Building No.51,Bantian No.3 Industrial Area,Longgang District,Shenzhen TEL:86-755-82338710 FAX:86-755-28751866 website: www.smartfeigete.com |
||
| Specification Sheet | ||
| Model No: SF518 | Android IP67 Data Collector PDA  |
|
| 1.General Features | ||
| Detail Item | Configuration | Remarks |
| CPU Model | Qualcomm SM6115 Octa-core 2.0GHz | |
| Operating System | Android 12 | |
| ROM + RAM | 4GB ROM+64GB RAM,LPDDR4,UFS; Extension SD card up to 256GB | Opotional:6GB ROM+128GB RAM |
| LCD | 5.5 inches, resolution: 1440*720pixels | |
| Touch Panel | 5 point Capacitive Touch Screen,Gorilla Glass3 | Support gloved touch and wet hand operation |
| Camera | Front Camera:5.0MP Rear Camera:13MP,AF,Flash Light |
Opotional: Front Camera:8.0MP,Rear Camera:16MP |
| Barcode Scanner | Scanner read format: UInPteCr/lEeAavNe,dCo2doef152,8D,iCscordeete392,oCfo5d, eC9h3in, Cesoed2e1o1f,5, Codabar, MSI, RSS,PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) |
|
| Audio | Mic × 2 | |
| Reciver × 1 | ||
| Speaker × 1 | ||
| Charge Prompt | Red:on charge Green:full charged |
|
| Battery | Removable Lithium battery (4.45V/5000mAh) 0r 8000mAh as customerization | |
| Quick Charge＜4h | ||
| Vibrative Motor | Yes | |
| Sensors | G-sensor | |
| Light Sensor | ||
| Distance Sensor | ||
| Geomagnetic sensor | ||
| Gyroscope sensor | ||
| I/O | USB Type-C × 1 | OTG,USB 3.0 |
| SIM Card,TF Card (two nano SIM cards or one nano SIM card and one TF card) |
two out of three card holders | |
| Buttons | Volume +/- key, Power key *1, Scan key *2, PTT*1 | |
| 2.Communication | ||
| 2G/3G/4G (Optional) |
GSM:B2/B3/B5/B8 | |
| WCDMA:B1/B2/B4/B5/B8/B19 | ||
| CDMA:BC0 | ||
| TDD:B34/B39 | ||
| LTE FDD：B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B26/B28 LTE TDD：B34/B38/B34/B39/B40/B41 |
||
| WIFI | Wi-Fi 802.11a/b/g/n/ac（Dual-band Wi-Fi: 2.4G+5G） | |
| Bluetooth | BT5.0+BLE | |
| GPS | Support GPS, A-GPS, Beidou, Galileo, Glonass ;support high precision positioning module, L1/L5 dual frequency (optional) | |
| NFC | Built-in,13.56MHz | |
| Support ISO14443A/14443B/15693 | ||
| Card Reading Distance:0-3cm | ||
| 3.Reliability | ||
| Operate Temperature | -20℃~60℃ | |
| Storage Temperature | -30℃~70℃ | |
| Humidity | 5%RH–95%RH(Non-Condensing) | |
| Electrostatic Discharge (ESD) | ±15KV(air),±8KV(direct) | |
| Rugged Feature | IP67 | |
| Drop Height | 1.5m | |
| 4.Structure Parameters | ||
| Dimension | 160mm (L) *74mm (W) *14mm (D) | |
| Weight | 262g (including 5000mAh battery) | |
| 5.Accessories | ||
| Packaging | In white box | |
| Hand-strap | Optional | |
| USB Data Cable | 1*pcs | |
| Adapter | 1*pcs | |
| Instruction | 1*pcs | |
-
