Industrial 10.1 inches Rfid Tablet
Industrial 10.1 inch Rfid Tablet Model No SF106S with upgrading Android 11 OS, Octa-core processor 2.4 GHz (4+64GB/6+128GB), 10.1 Inch HD large screen, IP 68 rugged Military standard with battery 10000mAh, 13MP camera. Built- in FBI Fingerprint sensor, facial and Iris recognition supporting, as well as 1D/2D barcode scanner and powerful UHF RFID supports.
-
ANDROID 11 OS
-
OCTA-CORE 2.4
-
10.1 INCH DISPLAY
-
3.7v/10000mAh
-
UHF RFID
-
1D/2D Barcode Scanner
-
NFC SUPPORT 14443A protocol
-
4+64GB (8+128 as option)
-
13MP Auto-focus
-
GPS, Beidou
-
IP68 Standard
-
Fingerprint * Facial & Iris support
Industrial 10.1 inches RFID tablet SF106S is high performance terminal with upgraded Android 11 OS, Octa-core processor 2.4Ghz of memory 4+64GB (8+128GB as option), 10.1 Inch FHD large screen, IP 68 rugged Military tablet with battery 10000mAh, 13MP camera, Powerful 1D/2D barcode scanner and UHF RFID reader. The tablet with optional biometric fingerprint sensor, facial and Iris recognition module.
It widely applied for the industries of Telco Sim Card Registration, Military, Mobile Time Attendance, warehouse sorting, Outdoor using etc.

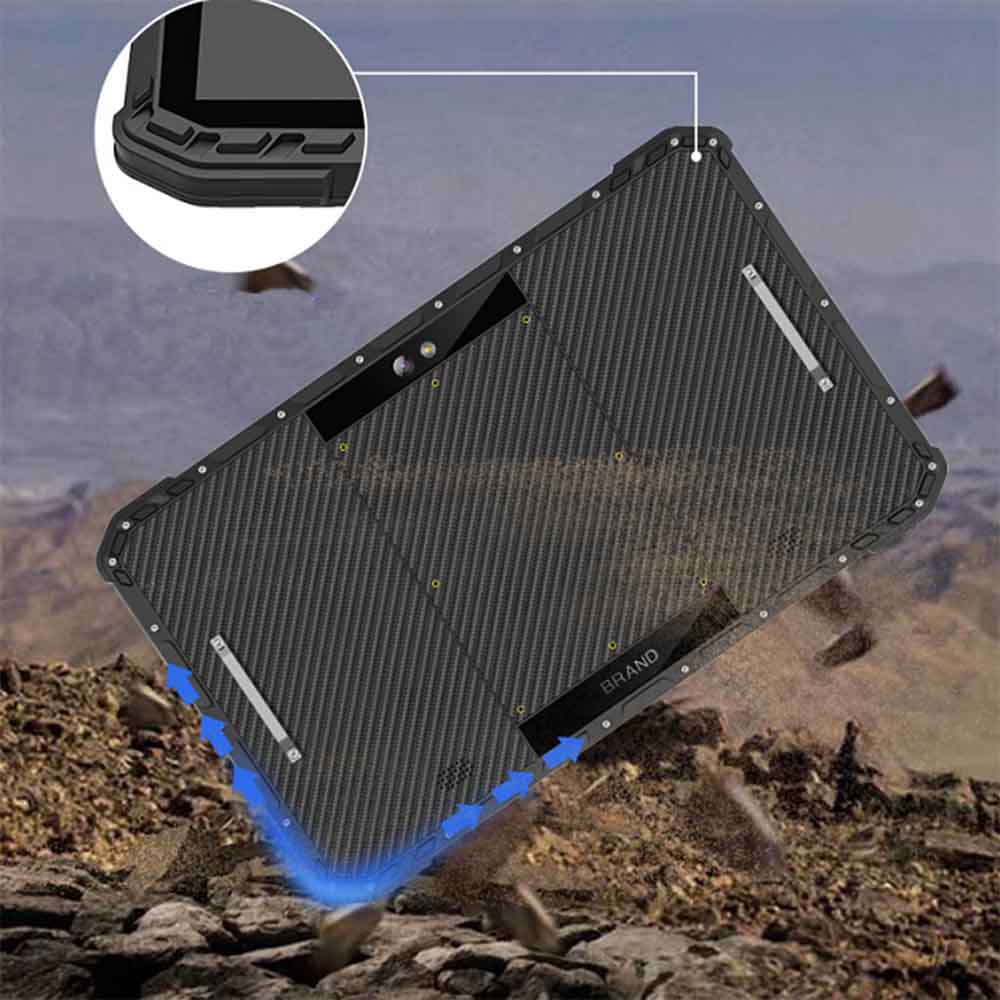

Industrial rugged tablet with IP68 protection standard, high strength industrial material, water and dust proof. Withstanding 1.5 meters drop without damage.
Industrial UHF Rfid tablet SF106S supports long reading distance of powerful UHF performance, frequency supports 902MHz-928MHz (US) / 865MHz-868MHz (EU).
Up to 10000mAh rechargeable and replaceable battery satisfy your whole day work without interruption
10.1 Inches android tablet SF106S of Corning Gorilla multi touch display. FHD 1200*1920 high resolution.

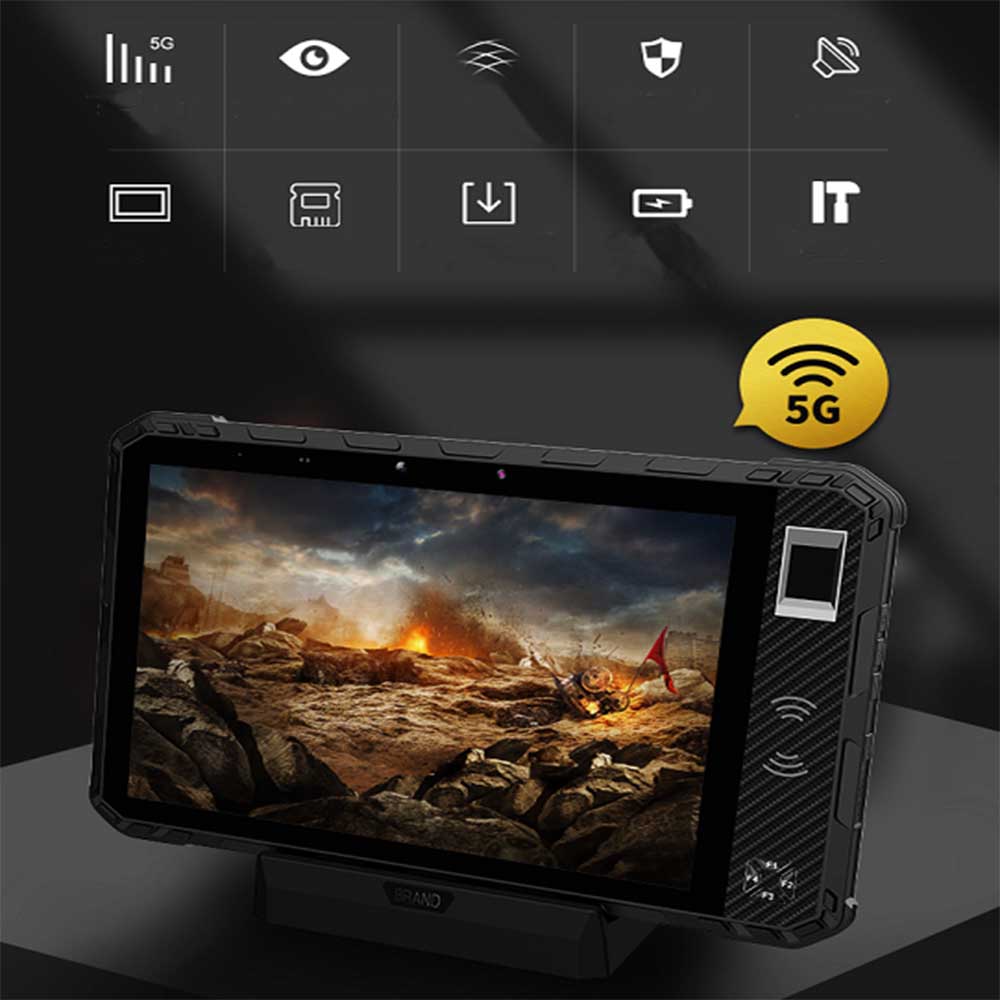

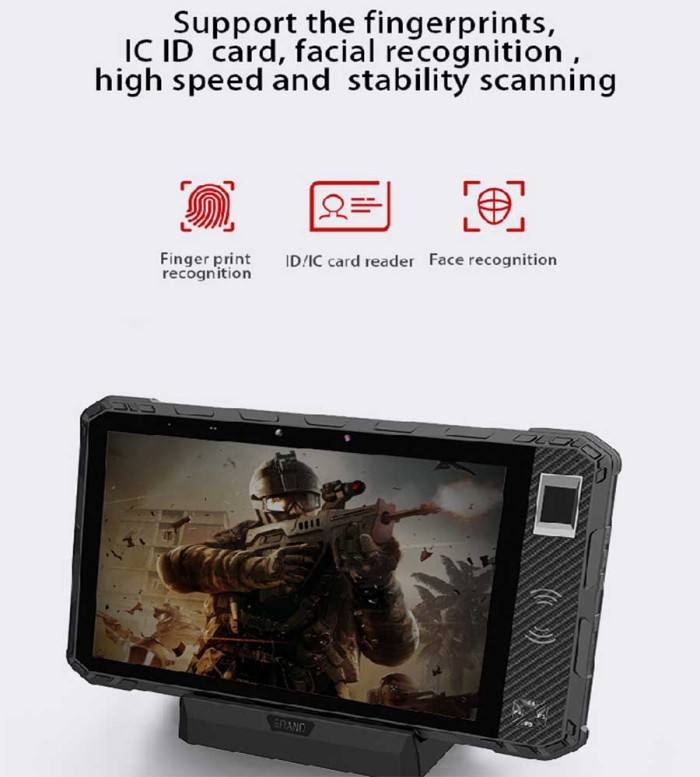

Rugged biometric tablet SF106S with FBI certified fingerprint module as optional, comply with ISO19794-2/-4, ANSI378/381 and WSQ standard; also combined with facial recognition, making the authentication much safe and convenient.

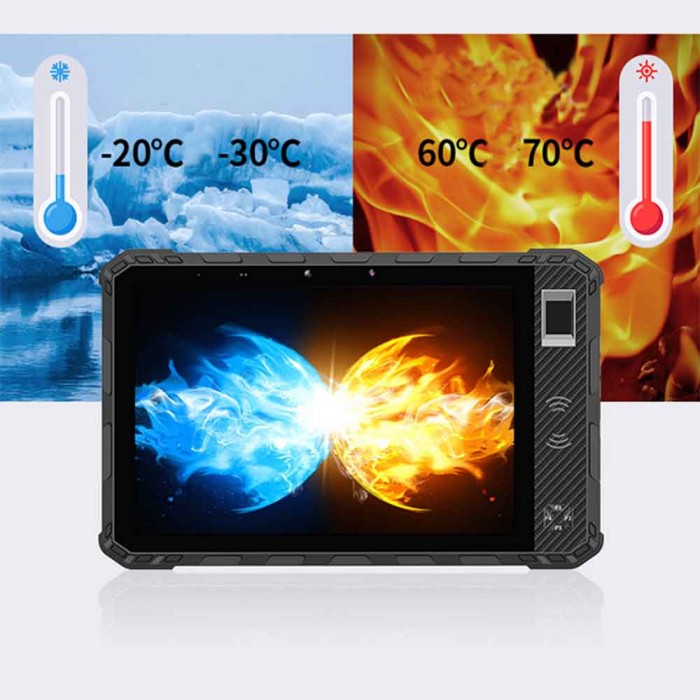

Working temperate -20°C to 70°C suitable working for harsh environment.

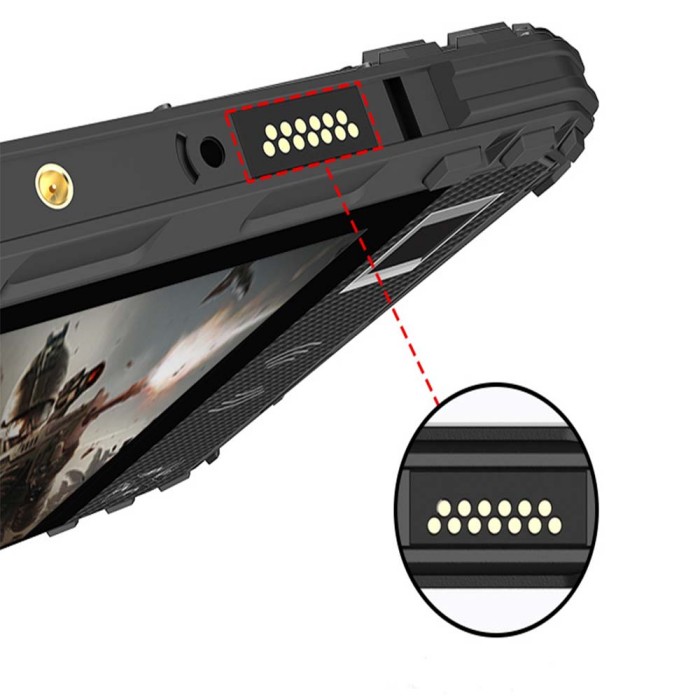

pango pin function for easy PPT talking on vehicles.

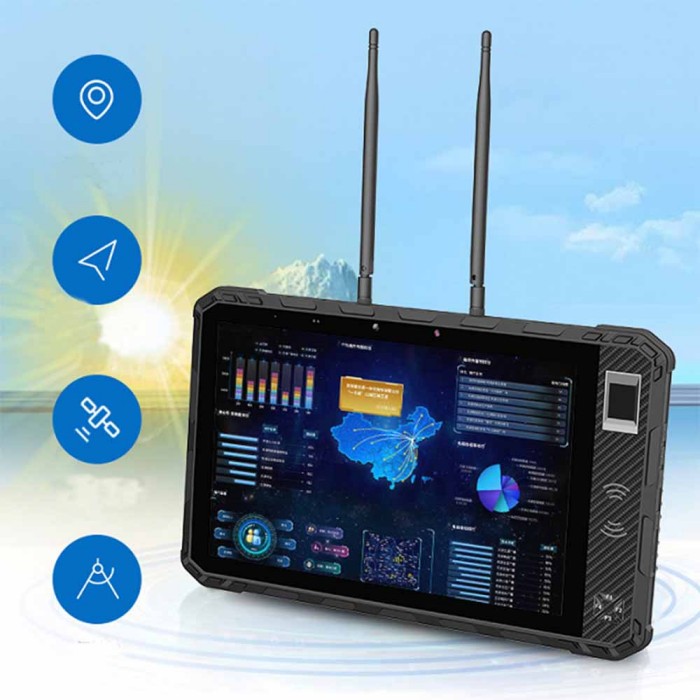

Industrial android tablet PC SF106S with Built-in GPS Beidou positioning and Glonass positioning, providing high precision safety information at any time, supports centimeter position.

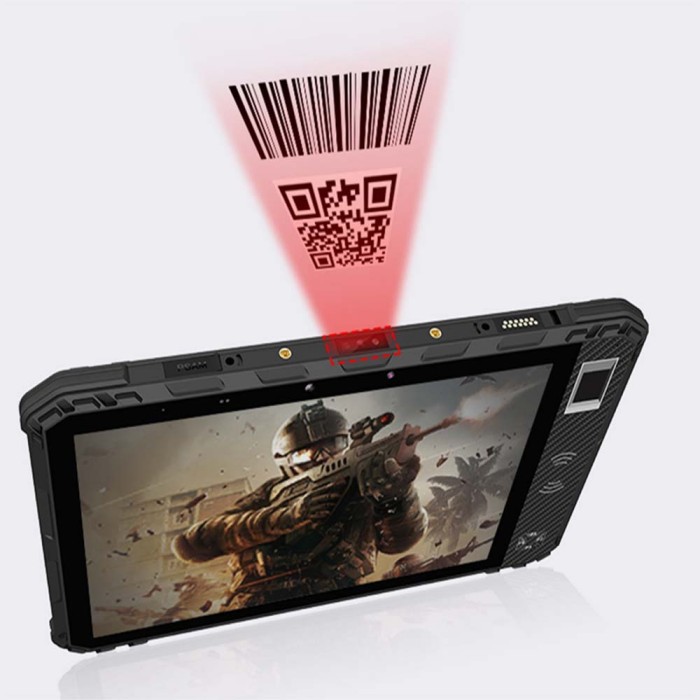

Efficient 1D and 2D barcode laser barcode scanner (Honeywell, Zebra or Newland) built-in to enable decoding different kinds of codes with high accuracy and high speed.
3D depth camera, single of binocular facial recognition support wider view.

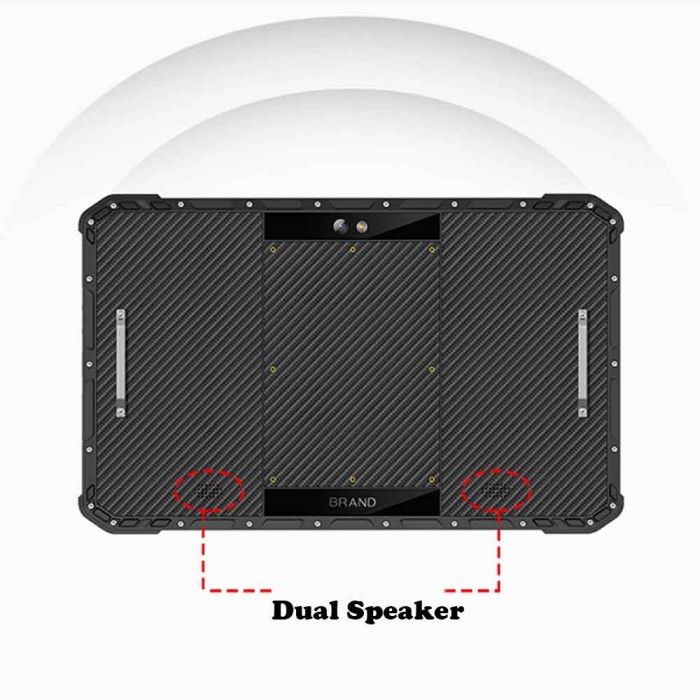

Dual speaker design for outer door.

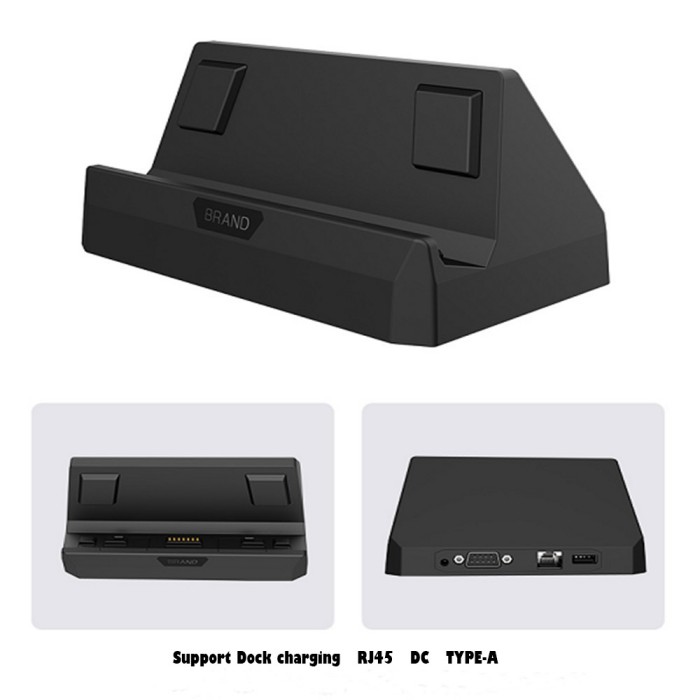

pango pin function for easy PPT talking on vehicles. Optional cradle for quick charging, RJ45, Type A and DB9 function.

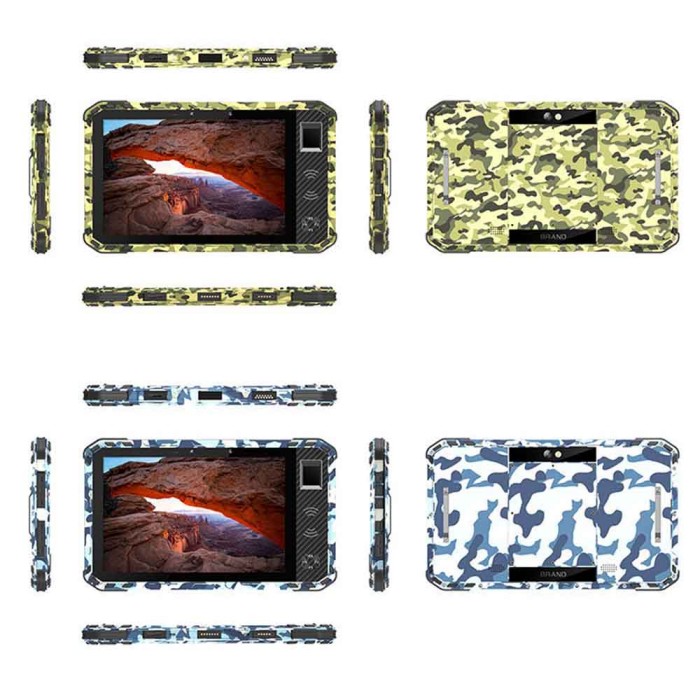

Different color options for army usage.
Industrial 10.1 inches RFID tablet FAQ for reference:
A: Normally we offer 12 Months Warranty after shipment.
A: High sensitive RFID UHF module with high UHF tags reading up to 500tags per second.
A: Yes, we offer free SDK support for secondary development, technical one-on-one services; Free testing software support (NFC, RFID, FACIAL, FINGERPRINT).
A: Generally we would not provide free sample.
If the customer confirm our specification and price, they can order the sample firstly for testing and evaluation.
Sample cost could be negotiated to refund after bulk order placed.
A: We could support client logo on device booting or logo printing for bulk order.
Sample order, depend on project needed.
Industrial 10.1 inches RFID tablet SF106 with widely solution which applied for mining, census, electric patrol, Military, public transportation etc.
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition
| No | Name | Description |
| 1 | Ultra-high frequency RFID read/write area |
Radio Frequency signal sending and receiving area |
| 2 | Buzzer | Sound indication |
| 3 | USB interface |
Charge and communication port |
| 4 | Function button | Command button |
| 5 | Switch button on/off | Power on or off button |
| 6 | Bluetooth status indicator | Connection status indication |
| 7 | Charging/p ower indicator | Charging indicator/remaining battery indicator |
| Item | Specifications | |
| System | Based on Android OS, and can provide SDK | |
| Reliability | MTBF (Mean Time Between Failures)：5000 hours | |
| Safety | Support RFID encryption module | |
| Protective Grade | Drop | Resistance to 1.2m Natural Drop |
| Protective Grade | Waterproof, dustproof IP 65 | |
| Communication mode | Bluetooth | Support Bluetooth 4.0, cooperate with APP or SDK to realize user’s information exchange |
| Type C USB | Data Communication by USB Connection | |
| UHF RFID reading |
Working frequency | 840-960MHz（Customized on demand frequency） |
| Support Protocol | EPC C1 GEN2、ISO 18000-6C or GB/T29768 | |
| Output Power | 10dBm-30dBm | |
| Reading distance | Effective reading distance of standard white card is 6 meters | |
| Working Environment | Working temperature | -10℃～+55℃ |
| Storage temperature | -20℃～+70℃ | |
| Humidity | 5%～95% no condensation | |
| Indicator | Charging Electric quantity Tricolor indicator | When full power, the green indicator is always on; when part of the power, the blue indicator is always on; when low power, the red indicator is always on. |
| Bluetooth Connection Status Indicator | Bluetooth status is unpaired while flash is slow; Bluetooth status is paired when flash is fast. |
|
| Battery | Battery capacity | 4000mAh |
| Charging current | 5V/1.8A | |
| Charging time | Charging time is about 4 hours | |
| External Discharging | By identifying type C OTG line, external discharge can be realized. | |
| Physical | I/O | Type C USB port |
| Key | Power key, backup key | |
| Size/Weight | 116.9mm×85.4mm×22.8mm/260g | |
-
