Bluetooth UHF Reader
Bluetooth UHF reader Model No SFU5 is connected to Android OS, and other intelligent system platforms through Bluetooth interface, it can also be connected to computers through Type- c; 1D/2D barcode scanner supporting. Industrial wristband design, Rugged IP65 standard, better improve comfort. The popularization of RFID application system with the powerful UHF reading for superior sensitivity.
-
Based on Android System
-
IP65 Sealing
-
5600mAh Powerful Battery
-
UHF reading
-
1D/2D Barcode scanning
-
1.5M Drop Proof
Bluetooth RFID UHF Reader Model No SFU5 engineered with the powerful UHF chip for superior sensitivity, extended read range up to 5 meters. It compatibles with Android/iOS devices to extend RFID capabilities. Bluetooth-enabled interaction with companion apps/SDKs. SFU5 also supports 1D/2D barcode scanning, which widely used in RFID applications such as logistics, access control, clothing, retail, warehousing, and intelligent manufacturing.

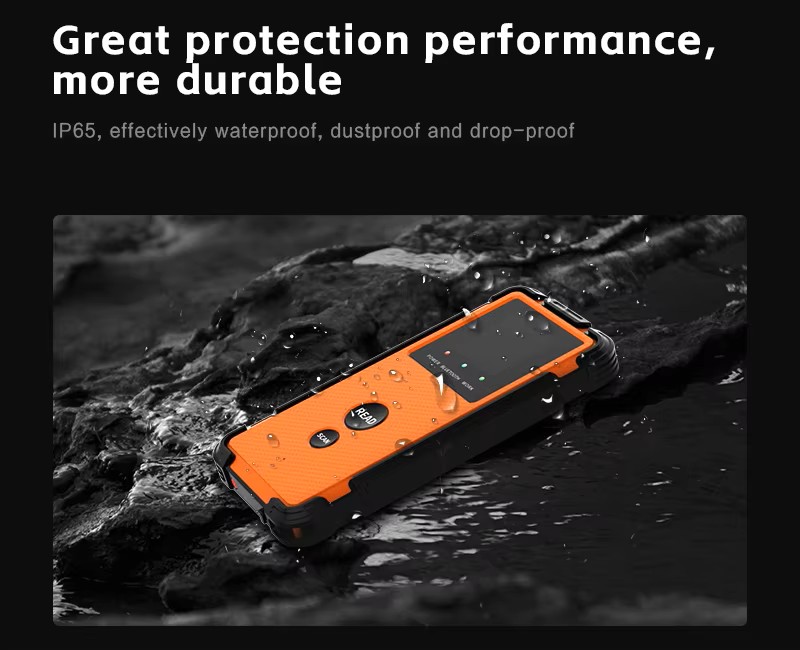

Bluetooth UHF wearable scanner SFU5 with economic portable design for industrial wristbands., IP65 standard, water and dust proof. Withstanding 1.5 meters drop without damage.

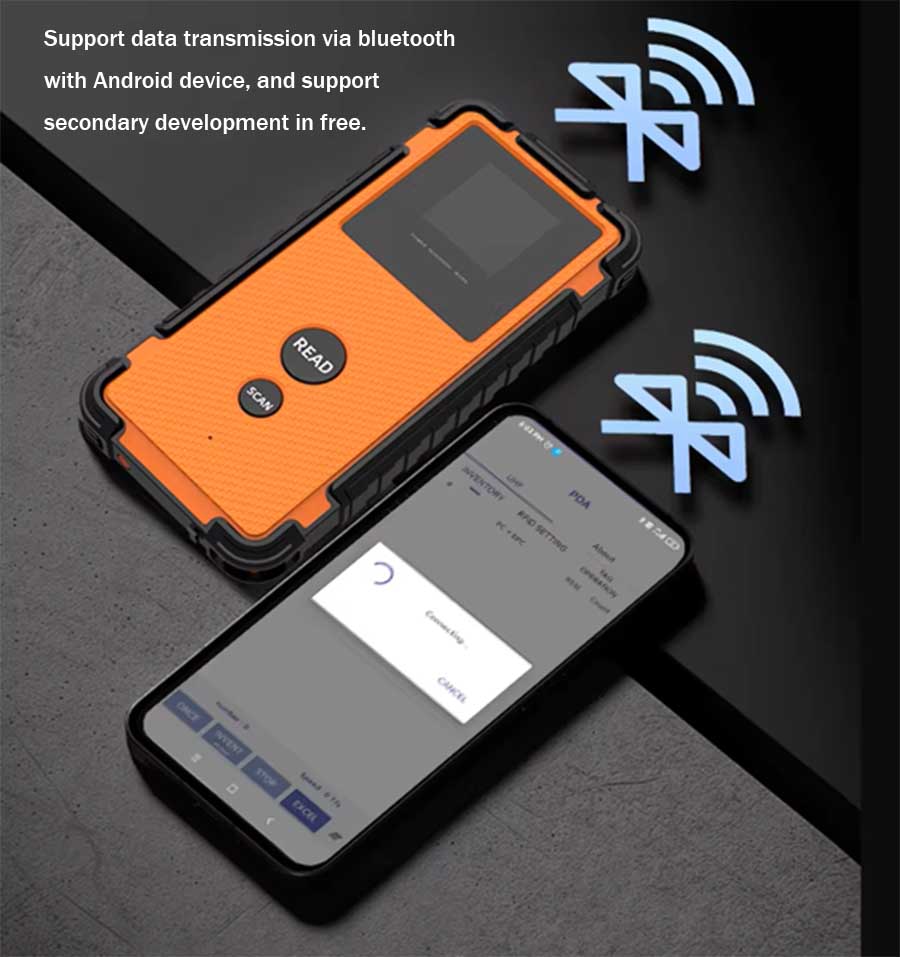

UHF rfid reader is easy to change your Android mobile terminals to UHF RFID Scanner via Bluetooth connection, as well as SDK support for secondary development in free.

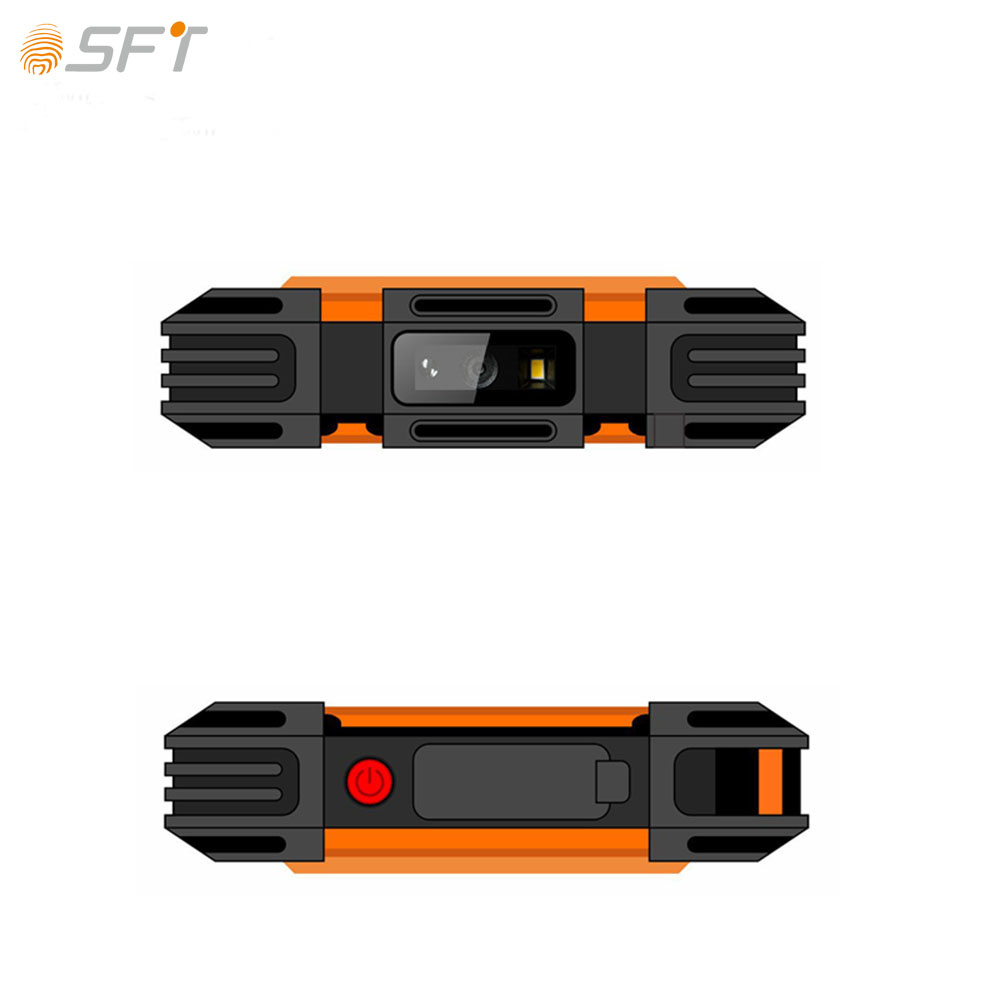

UHF Barcode scanner U5 with professional barcode reader support 1D/2D barcode scanning.
Up to 5600 mAh rechargeable and replaceable battery provides more possibilities for long-term operation.
Rugged UHF reader SFU5 supports Android system, long reading distance of UHF performance, reading distance can reach 5M
Bluetooth RFID UHF Reader FAQ for reference:
A: Normally we offer 12 Months Warranty after shipment.
A: SFU5 RFID scan distance can reach around 5 meters. (test case is related to tag type, transmit power and application environment)
A: Normally about 500 tags/sec
A: China 920-925 MHz;
US 902-928 MHz;
Europe 865-868 MHz
A: Yes, we offer free SDK support for secondary development, technical one-on-one services; Free testing software support (NFC, RFID, FACIAL, FINGERPRINT).
A: Generally we would not provide free sample.
If the customer confirm our specification and price, they can order the sample firstly for testing and evaluation.
Sample cost could be negotiated to refund after bulk order placed.
A: We could support client logo on device booting or logo printing for bulk order.
Sample order, depend on project needed.
Bluetooth UHF Reader SFU5 widely applications that satisfy your life much convenient.
Clothes wholesale
Supermarket
Express logistics
Smart power
Warehouse management
Health Care
Fingerprint recognition
Face recognition

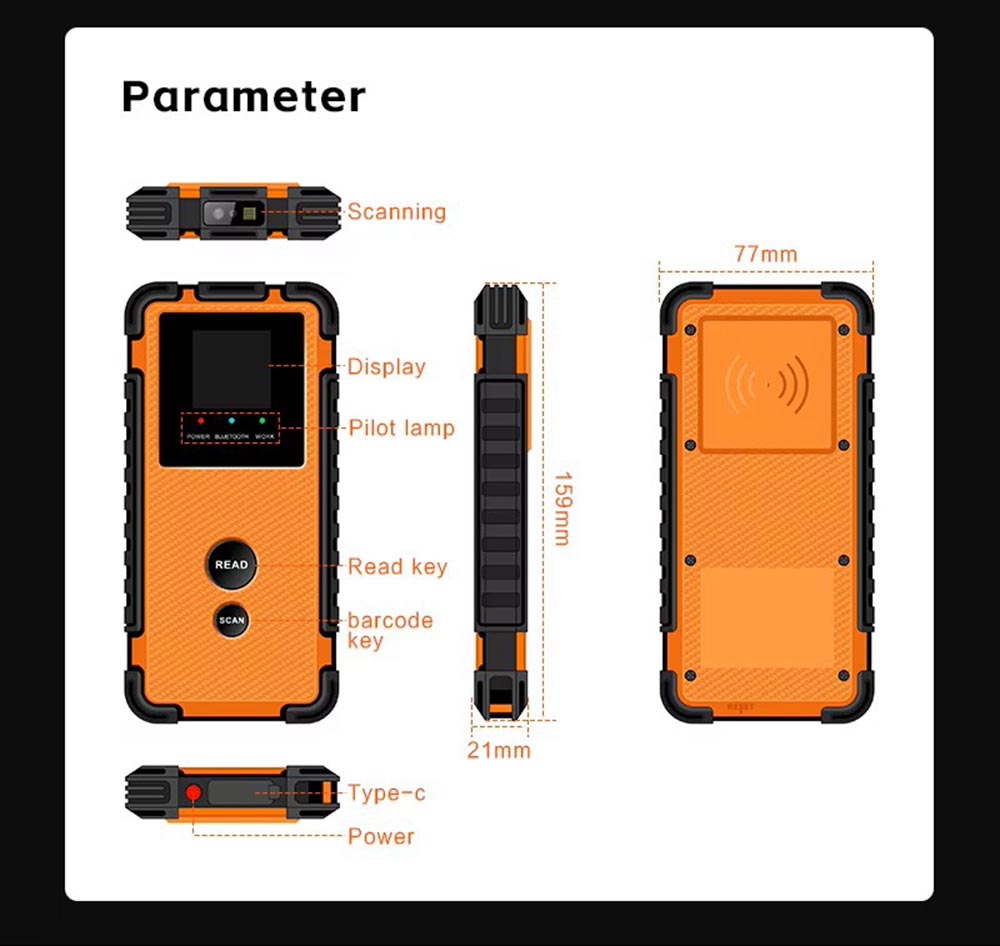

| Dimension | 159 × 77 × 21mm |
| Net Weight | 320g |
| Display | 1.5 inches, 128*128 pixel |
| Shell Material | TPU+ABS+PC |
| Color | Orange + Black |
| Buzzer | Configurated by software |
| Interface | Type-C |
| Indicator | Power indicator, Bluetooth indicator |
| Bluetooth Module | Bluetooth 5.1 |
| Keys | Scan key, power key |
| Protocol（RFID） | EPC C1 GEN2/ISO 18000-6C |
| Frequency | 902MHz-928MHz (US) / 865MHz-868MHz (EU) |
| Output Power | 1W(15-30 dBm adjustable ) |
| Antenna type | Grid Polarized Ceramic Directional Antenna |
| Reading Distance | 1-5 meter(Depend on tag performance, reader power and environment) |
| Barcode Scanner | 1D/2D support |
| System Support | Android, Windows |
| Charging Method | Type-C, Output：5V 0.5A~3A |
| Battery Capacity | 5600 mAh rechargeable lithium battery |
| Working time | 14 hours/ equalization mode |
| Work Temperature | -20℃～50℃
|
| Storage Temperature | -20℃～70℃
|
| Operating Humidity
|
5%～95% Non condensing |
| Standard Accessories | Power adapter, wristband, USB cable |
| Certification | IP65、CE、FCC |
| Application | Logistics, supply chain, warehousing, Inventory |
-
