BIOMETRIC RUGGED TABLET

Model No: SF816

● Android 13, OCTA-CORE 2.0GHz
● 8 inch FHD Gorrilla Class Capacitive touch screen
● Fingerprint & Facial & Iris Recognition
● Super Rugged, Industrial IP68 Standard
● Large Battery Capacity 3.7V/10000mAh
● 5G Network Connection
● UHF RFID Reading and Writing as option
● Honeywell &Zebra 1D/2D Barcode Reader for data collection

  • ANDROID 13 ANDROID 13
  • OCTA-CORE 2.0 OCTA-CORE 2.0
  • 8 INCH DISPLAY 8 INCH DISPLAY
  • 3.7v/10000mAh 3.7v/10000mAh
  • UHF RFID UHF RFID
  • BARCODE SCANNING BARCODE SCANNING
  • NFC SUPPORT 14443A protocol NFC SUPPORT 14443A protocol
  • 4+64GB(6+128GB)as option 4+64GB(6+128GB)as option
  • 8MP+13MP Auto-focus 8MP+13MP Auto-focus
  • GPS, BDS,GLONASS support GPS, BDS,GLONASS support
  • Fingerprint Identification * Facial & Iris (as option) Fingerprint Identification * Facial & Iris (as option)
  • IP68 Standard IP68 Standard

Product Detail

Parameter

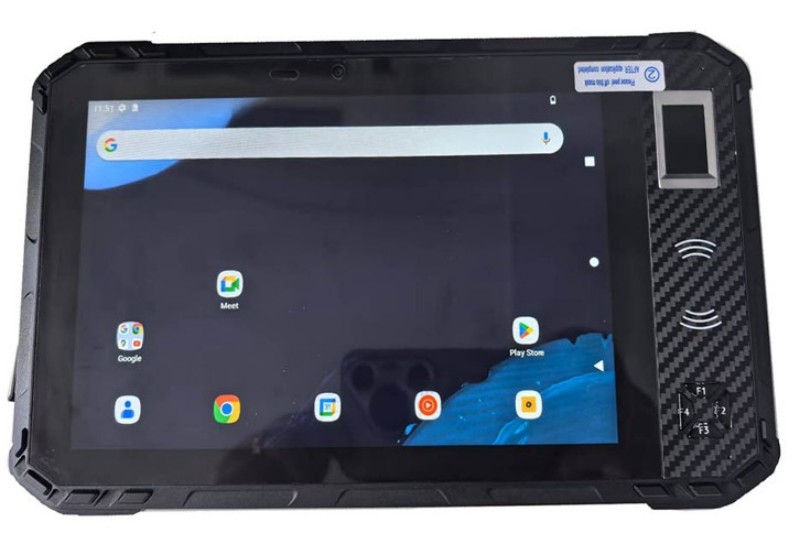

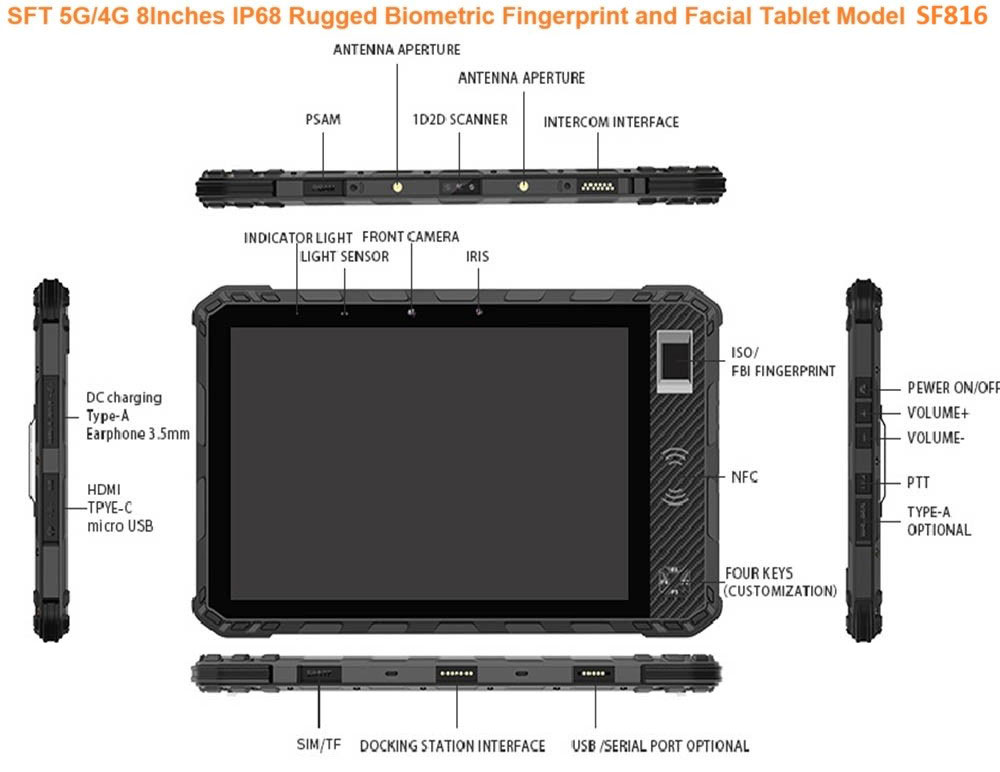

SF816 Biometric 8 inch Rugged Tablet is high performance terminal with Android 13.0 OS, Octa-core processor(4+64GB/6+128GB), 8 Inch HD large screen (1920*1200 IPS), IP 68 rugged Military tablet with powerful battery 10000mAh, 13MP camera, Built in FBI Fingerprint sensor, facial and Iris recognition as optional, RFID and Barcode scanner standby, which widely used for Sim Card Registration, Industrial filed, Mobile Time Attendance, Military etc.

fingerprint-rugged-tablet1

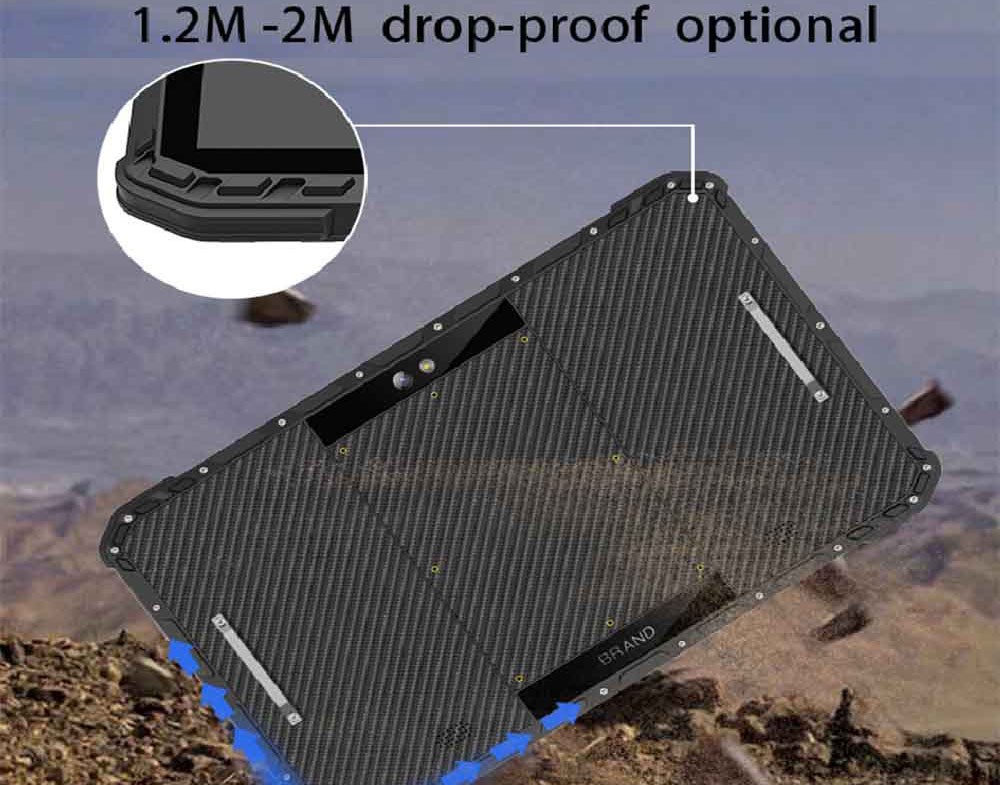

SF816 Industrial IP68 protection standard，high strength industrial material, water and dust proof. Withstanding 1.5 meters drop without damage.

3
2-2

Up to 10000mAh rechargeable and replaceable battery satisfy your whole days’ work without interruption

12

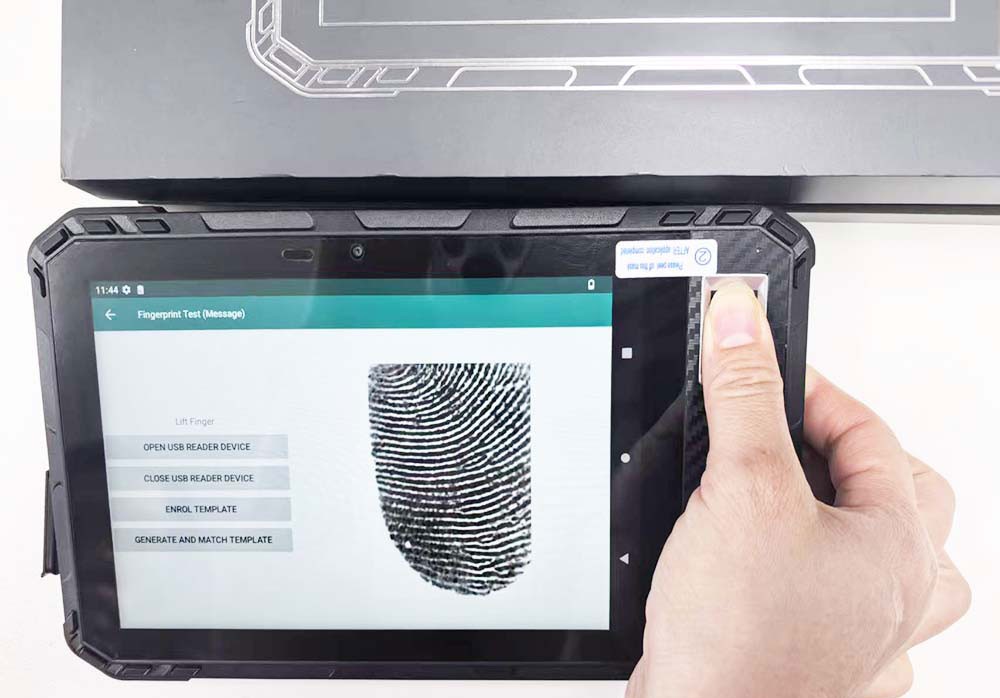

FBI certified fingerprint module as optional, comply with ISO19794-2/-4, ANSI378/381 and WSQ standard; also combined with facial recognition, making the authentication much safe and convenient.

biometric-rugged-tablet

SFT SF816 Rugged 8 Inch tablet Pc, Working temperate -20°C to 70°C suitable working for harsh environment.

11-1

Built-in GPS，optional Beidou positioning and Glonass positioning, providing high precision safety information at any time, supports centimeter position.

7

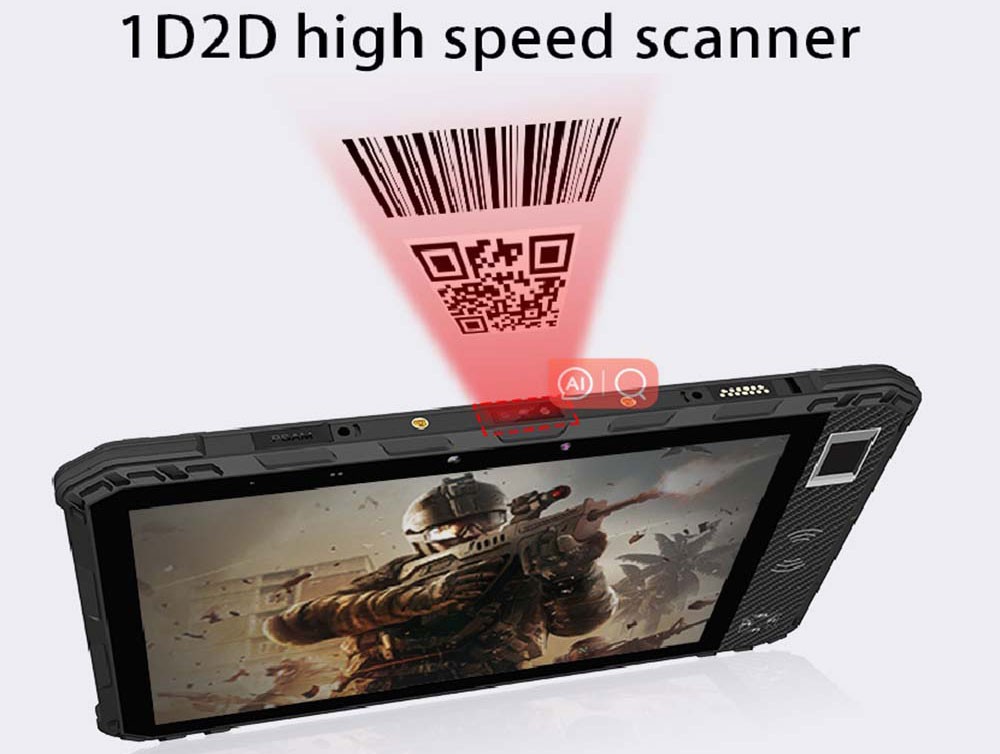

Efficient 1D and 2D barcode laser barcode scanner (Honeywell, Zebra or Newland) built-in to enable decoding different kinds of codes with high accuracy and high speed (50times/s).

9-2

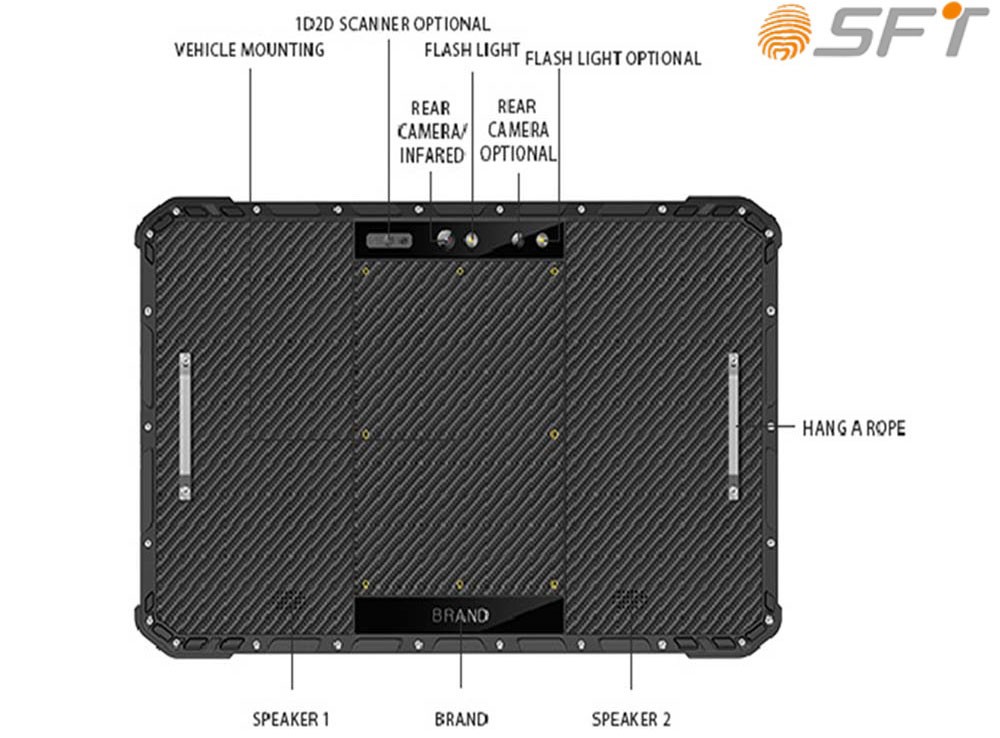

3D depth camera, single of binocular facial recognition support wider view.

industrial-tablet-PC

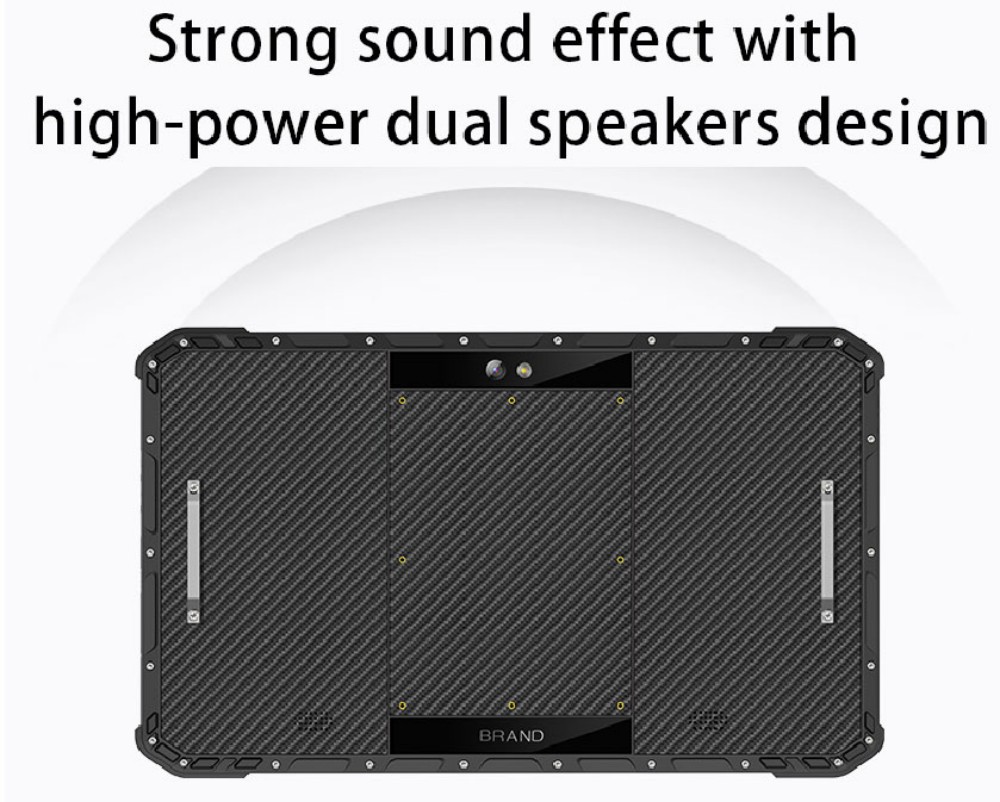

Dual speaker design for outer door.

10

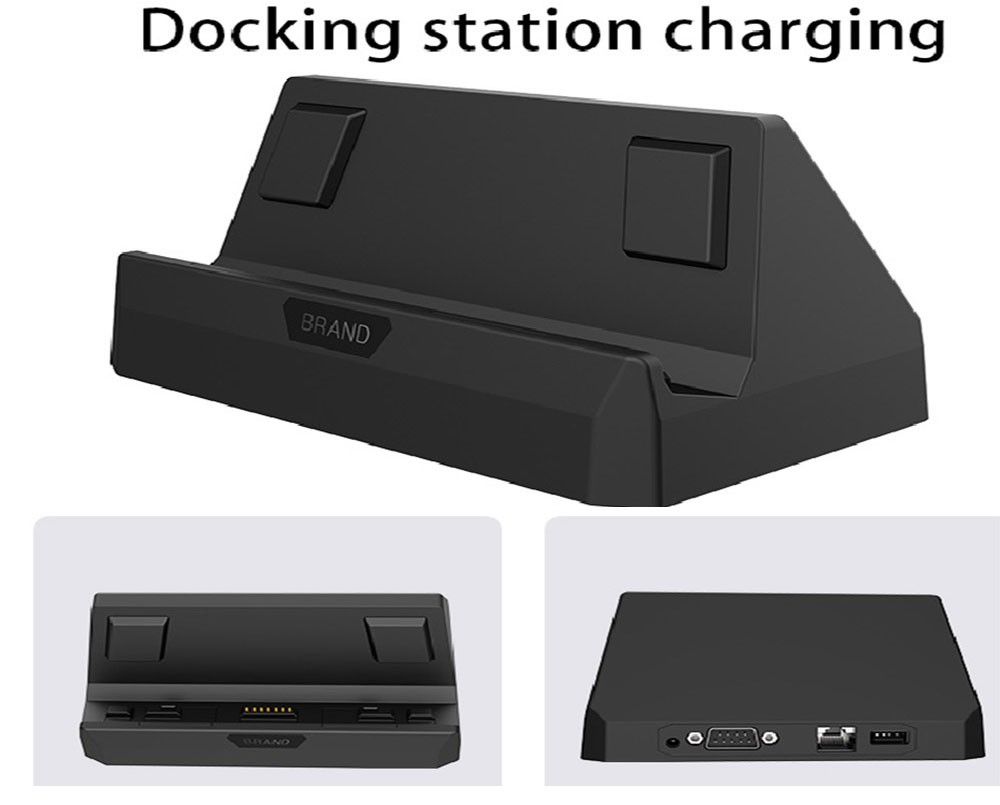

Optional cradle for quick charging, RJ45, Type A and DB9 function.

13
4

SF816 also widely used in mining, census, electric patrol, Military, public transportation etc.

14

Multiple Application Scenarios

Widely used for parking, ticket system, restaurant, retail store, Census etc

VCG41N692145822

Clothes wholesale

VCG21gic11275535

Supermarket

VCG41N1163524675

Express logistics

VCG41N1334339079

Smart power

VCG21gic19847217

Warehouse management

VCG211316031262

Health Care

VCG41N1268475920 (1)

Fingerprint recognition

VCG41N1211552689

Face recognition

  • Previous:
  • Next:
    • ghjy1Feigete Intellient Technology Co.,Limited
    ADD: 2 Floor,Building No.51,Bantian No.3 Industrial Area,Longgang District,Shenzhen
    TEL:86-755-82338710 FAX:86-755-28751866 website: www.smartfeigete.com
    Specification Sheet
    Model No.:
    SF816    		 4G Rugged IP68

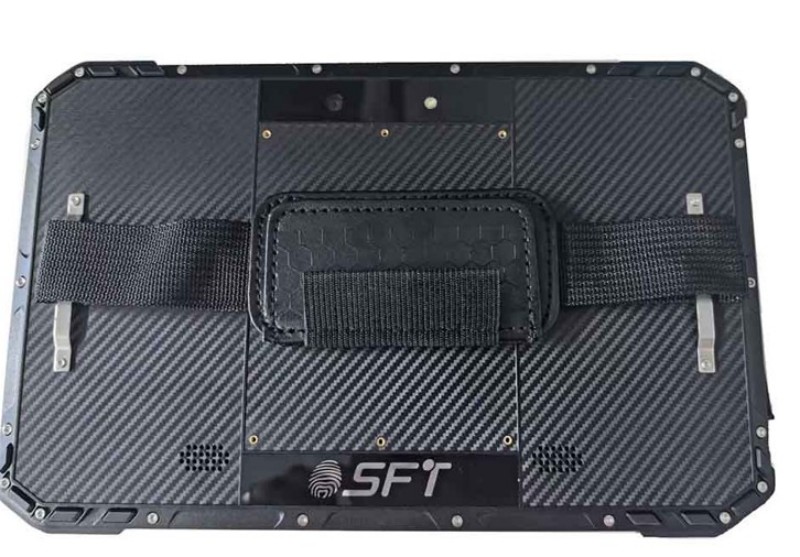

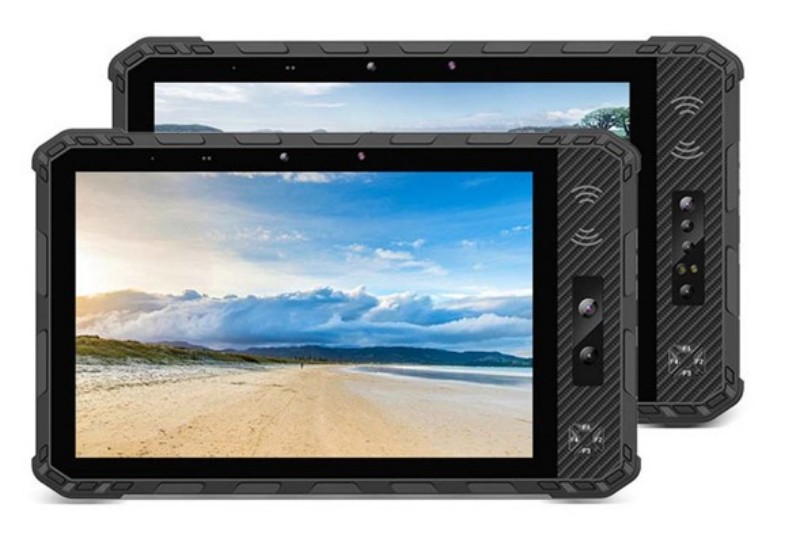

    8 Inch Android Tablet ndgrb3 ndgrb4 ndgrb2
    CPU MTK6771T, Octa-core 2.0 GHZ
    OS Newest Android 13 Upgradable
    RAM/ ROM Standard 4G+64GB; 6+128GB or 8+256GB for option
    Dimension 271.4*178.8*17mm
    IP Degree IP68,MIL-STD-810G Standard; 1.5m to 2m drop felling test
    Touch Panel Gorrilla Class III 8” FHD 1200*1920;400nit screen luminance and maximum to 600nits; Readable under strong sunlight and wet fingers
    Camera Front:8.0M,Rear 13M
    Battery DC 3.7V/10000mAh
    Network GSM：2/3/5/8
    WCDMA：1/2/4/5/8
    TDS：34/39
    TDD：34/38/39/40/41
    FDD：1/2/3/4/5/7/8/12/17/20/
    5G for option
    CDMA：BC0/BC1
    NFC Support NFC 13.56MHz Type A/B; ISO 15693 protocols
    UHF UHF and UHF R2000 for option
    Fingerprint scanner
    (For option)    		 FBI certified Biometric Fingerprint Sensor/Reader, Capacitive Touch Screen or Optical Fingerprint sensor ,FIPS 201 image Quality Specification PIV-071006 ,Advanced CMOS Sensor,Resolution:500 DPI,320*480 pixels,8-bit grey level , LDF-Live Finger Detection feature
    IRIS Recognition Dual camera IRIS recognition for option
    Application range Military government fingerprint collection, personal fingerprint real name registration, fingerprint payment, fingerprint encryption
    Wifi 802.11b/g/n support 2.4/5.0 GHz,dual band
    Bluetooth Bluetooth5.0
    GPS GPS, BDS,GLONASS and Reserve U-Blox M8N pads optional
    Laser Barcode scanner 2D barcode scanner supported for option
    G-sensor G sensor 3 axis
    MIC Built-in microphone
    Speaker 8Ω / 2.5W fidelity speakers *2
    Light sensor Support
    Distance sensor Support
    SIM Card Support

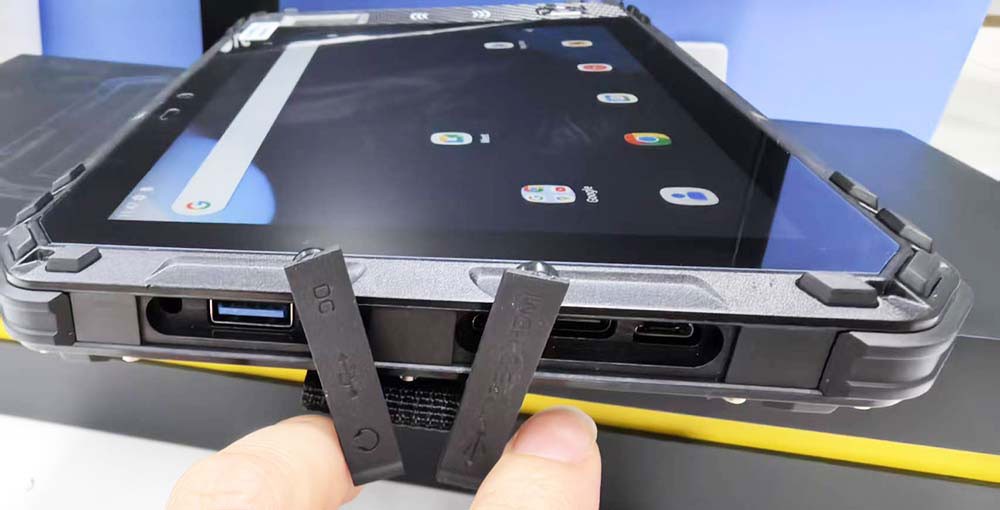

    Ports 3.5mm stereo phone jack; HDMI,RJ45,RS232, RS485, DB9, Capacitive pen; magentic pen; CAN for option
    USB port 1* Type C; 1* Type A support OTG;
    TF 1x miniSD scard up to 128G
    Earphones SIM Card 3.5mm stereo phone jack
    Operation temperature -20℃~60℃
    Humidity 95%
    Storage temperature -40℃~70℃
    DC Charging 5V/3Asupport fast charging
    Certificate CE/ROSH /3C/FCC
